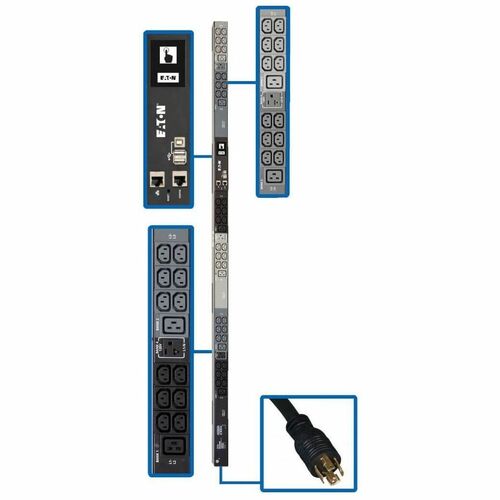

Tripp Lite by Eaton PDU3EVN6L2120 45-Outlet PDU PDU3EVN6L2120

Previous Next

Out of stock

Product Type PDUs

Vendor Tripp Lite by Eaton

5.8kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment. Features3-Phase 0U PDU Distributes and Monitors Network-Grade PowerRecommended for data centers, server rooms and network closets, this monitored power distribution unit provides real-time remote monitoring of voltage and load levels via built-in...

Wishlist

To add this product to your wish list you must Sign In or Create an account

5.8kW 3-phase PDU with multifunction touchscreen LCD distributes and monitors AC power in an IT or industrial environment.

Features
3-Phase 0U PDU Distributes and Monitors Network-Grade Power

Recommended for data centers, server rooms and network closets, this monitored power distribution unit provides real-time remote monitoring of voltage and load levels via built-in network connection. A six-foot (1.8-meter) cord with NEMA L21-20P input plug connects the 208V 3-phase PDU to a compatible AC power source, generator or protected UPS. The firmware can be easily upgraded to ensure the Tripp Lite vertical PDU continues to perform at its best.

45 Outlets Dispense AC Power to Connected Equipment

During normal operation, 36 C13 (208V), six C19 (208V) and three NEMA 5-15/20R (120V) outlets distribute AC power to rack equipment. The outlets are split into six individually monitored load banks-three banks containing two C19 and 12 C13 outlets and three of one 5-15/20R outlet each. Three LEDs monitor load conditions for each bank. Plug-lock insert sleeves for the C13 and C19 outlets are included to prevent connected cables from becoming accidentally dislodged.

Built-In LX Platform Network Management Card Allows Remote Access 24/7

The Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. The 0U PDU can receive IP address assignments via DHCP server (automatic) or static (manual) method.

Color Touchscreen LCD Offers Important Data at a Glance

An easy-to-navigate color touchscreen LCD reports network data, including IP address, input current level per phase, and output current per load bank with ±1% billing-grade accuracy. It also generates a unique QR code to allow read-only access to the 0U PDU via mobile device. If an EnviroSense2 module is connected to the 3-phase PDU, the LCD also displays status and environmental data, such as temperature and humidity.

Easy to Install Vertically in an EIA-Standard 19 in. Rack

The 70-inch (178 cm) 0U PDU mounts vertically using the included toolless mounting buttons or the included rack-mounting brackets. Spare buttons are also included. Use the included PDUMVROTATEBRKT kit to install the 208V 3-phase PDU with outlets facing the rear for better airflow or equipment access.

TAA-Compliant for GSA Schedule Purchases

The PDU3EVN6L2120 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDU3EVN6L2120 45-Outlet PDU today!

A device fitted with multiple outputs for the distribution of electric power
Remotely monitor single-or-three phase voltage, frequency even load levels with monitored PDUs

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDU3EVN6L2120
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDU3EVN6L2120
Product Name	PDU3EVN6L2120 45-Outlet PDU
Product Type	PDU
Technical Information
PDU Type	Monitored
Phase	Three Phase
Plug/Connector Type	NEMA L21-20P
Plug/Connector Detail	1 x NEMA L21-20P
Receptacle Type	IEC 60320 C13 IEC 60320 C19 NEMA 5-15/20R
Receptacle Detail	36 x IEC 60320 C13 6 x IEC 60320 C19 3 x NEMA 5-15/20R
Power Description
Input Voltage	230 V AC
Output Voltage	120 V AC 208 V AC
Power Rating (Watt)	5.80 kW
Input Current	16 A
Management
Management	IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
Interfaces/Ports
Network (RJ-45)	Yes
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70" (1778 mm)
Width	2.17" (55.12 mm)
Depth	2.52" (64.01 mm)
Weight (Approximate)	6.12 kg
Miscellaneous
Package Contents	PDU3EVN6L2120 45-Outlet PDU Built-in LX Platform Interface Configuration Cable 42 x Plug-lock Insert Sleeves Rack-mounting Hardware Spare Mounting Buttons PDUMVROTATEBRKT Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332206787
