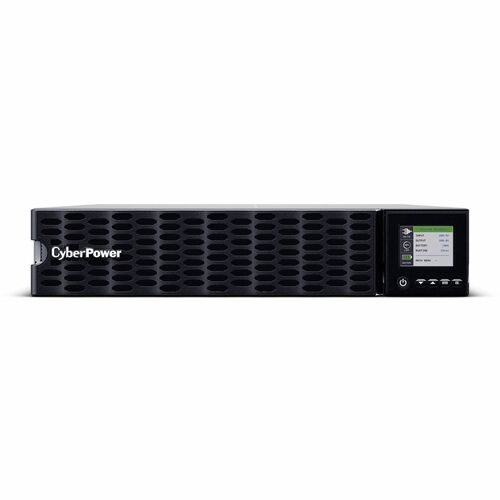

CyberPower Smart App Online OL5KRTHD 5KVA Tower/Rack Convertible UPS OL5KRTHD
Previous Next2 In stock
Industrial UPS
CyberPower
To add this product to your wish list you must Sign In or Create an account
The CyberPower Smart App Online OL5KRTHD high-density design offers more power in less space. In fact, it can be configured into 2U of rack space or as a tower, compared to 3U and 4U for similar competitive UPS models - giving you more room to grow. The OL5KRTHD features double-conversion topology for seamless power protection and a pre-installed RMCARD205.
For monitoring, this UPS offers a new state-of-the-art, multi-function, color matrix LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL5KRTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. The variable 7-speed fan provides automatic thermal management, based on power load, to reduce noise.
The optional BP144VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's all backed by a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your CyberPower Smart App Online OL5KRTHD 5KVA Tower/Rack Convertible UPS today!
- Capacity: 5000 VA / 5000 W
- High Density: 2U Size
- Power Factor (PF): 1
- Topology: Double-conversion
- Waveform: Sine Wave
- Output: 200, 208, 220, 230, 240 VAC User Configurable ±2%
- Plug type & cord: Hardwire with NEMA L6-30P Power Cord Option
- Outlet types: 2 × NEMA L6-20R, 2 x NEMA L6-30R
- Communication ports: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business Edition
| General Information | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL5KRTHD |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Smart App Online UPS |
| Product Model | OL5KRTHD |
| Product Name | Smart App Online OL5KRTHD 5KVA Tower/Rack Convertible UPS |
| Product Condition | New |
| Product Type | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type | Hardwired |
| Receptacle Type |
|
| Receptacle Detail |
|
| Transfer Time | 0 ns |
| Protection Type | Short Circuit |
| Overload Protection | Yes |
| EMI/RFI Noise Filter | Yes |
| Energy Saving | ECO Mode Efficiency: 96% | Power Description |
| Load Capacity (VA) | 5 kVA |
| Input Voltage | 230 V AC |
| Input Voltage Range | 120 V AC - 139 V AC |
| Output Voltage |
|
| Input Frequency | 70 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J | Management |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm |
|
Controls/Indicators |
| Status Indicators |
Multi-Function Color TFT-LCD Readout that Supports:
|
Interfaces/Ports |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes | Battery Information |
| DC System Voltage | 12 V DC |
| Number of Batteries | 12 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 6000 mAh |
| Backup/Run Time (Full Load) | 2.30 Minute |
| Backup/Run Time (Half Load) | 6.40 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Replaceable Battery | Yes | Environmental Conditions |
| Maximum Operating Temperature | 104°F (40°C) |
| Storage Temperature | -4°F (-20°C) - 113°F (45°C) |
| Maximum Operating Elevation | 10000 ft (3048000 mm) |
| Maximum Storage Elevation | 50000 ft (15240000 mm) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 66 dB(A) |
| Thermal Dissipation | 1186 BTU/h | Physical Characteristics |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.40" (86.36 mm) |
| Width | 17" (431.80 mm) |
| Depth | 28.30" (718.82 mm) |
| Weight (Approximate) | 41.91 kg | Miscellaneous |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | Taiwan |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 3 Year |
| UPC | 649532620425 |
