Tripp Lite by Eaton PDUMV30 PDU Metered 120V 30A 24 Outlet PDUMV30

4 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

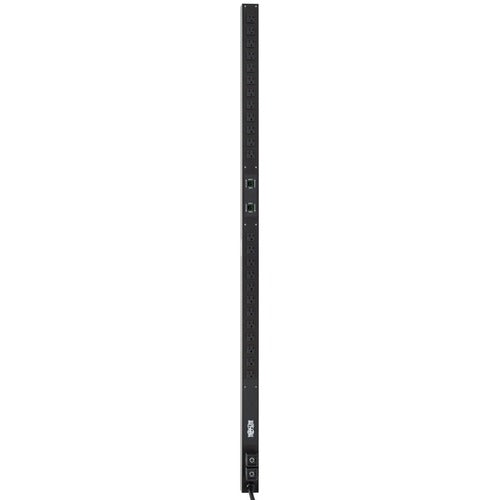

Tripp Lite Metered Power Distribution Units give IT Managers the ability to monitor network power consumption levels to prevent mains, generator, UPS or PDU overloads and to ensure proper load balance in complex redundant power applications. Each built-in, easy to read, two-character LED display offers continuous PDU current monitoring data in one-amp increments. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to multiple servers and vital networking equipment in rack enclosures, network closets and more. Toolless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUMV30 63.75 in. vertical 0U metered rack PDU supports 30A maximum capacity at 120V (agency derated to 24A). Includes 10-ft. attached line cord with L5-30P input plug. 24 5-15/20R outlets support networking equipment with 5-15P or 5-20P input plugs. Outlets are arranged in two separately metered and breakered 20A load banks (each with 12 5-15/20R outlets). Set of 2 built-in 2 character displays offer continuous information on PDU power consumption for each of the two built-in loading bank

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUMV30 PDU Metered 120V 30A 24 Outlet today!

Metered single phase 30A 120V, 0U 63.75in / 162cm vertical rackmount PDU
Pair of digital meters report output current in amps for each load bank
Attached 10ft / 3.0m cord with NEMA L5-30P input plug
24 NEMA 5-15/20R outlets in two separately breakered load banks

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMV30
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUMV30
Product Name	PDUMV30 PDU Metered 120V 30A 24 Outlet
Product Type	PDU
Technical Information
Plug/Connector Type	NEMA L5-30P
Receptacle Type	NEMA 5-15/20R
Receptacle Detail	24 x NEMA 5-15/20R
Protection Type	Overload Protection Short Circuit Protection
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Wall-mountable Rack-mountable
Height	63.75" (1619.25 mm)
Width	2.25" (57.15 mm)
Depth	3.75" (95.25 mm)
Weight (Approximate)	3.63 kg
Miscellaneous
Package Contents	PDUMV30 PDU Metered 120V 30A 24 Outlet PDUMV30 63.75 inch basic PDU with owner's manual Set of 2 bolt-on plug retention brackets and installation hardware Set of mounting brackets and installation hardware
Country of Origin	China
Warranty
Limited Warranty	2 Year
UPC	037332139337
