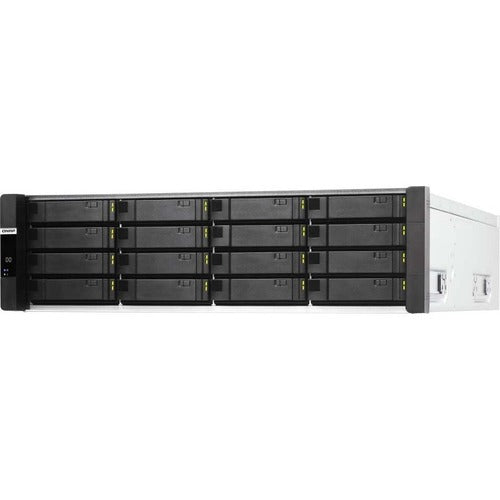

QNAP Enterprise ZFS NAS ES1686DC-2142IT-96G SAN/NAS Storage System ES1686DC-2142IT-96G-US
1 In stock
Storage Arrays & Servers
QNAP
To add this product to your wish list you must Sign In or Create an account
Next-generation Enterprise ZFS NAS: High-performance and near-zero downtime high availability
Delivering enterprise high availability, the ES1686dc Enterprise ZFS NAS features Intel® Xeon® D processors, dual active controllers, up to 512 GB DDR4 ECC memory, SAS 12Gb/s, and ZFS that supports logical volume management. The ES1686dc runs the latest QES 2.1.0 operating system that supports near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression. Whether being used as a mission-critical file server, virtualization server, VDI, medium-sized data center, video streaming, surveillance storage, and efficient file backup & recovery, the ES1686dc helps your business to achieve service-level agreements for performance and uptime.
Dual active-active controllers
Intel® Xeon® D dual active-active controllers provide supreme uptime and redundancy to ensure high availability.
Reliable & High-performance
Battery-protected DRAM write to cache data protection and Flash read acceleration provides industry-leading random access performance.
2 x PCIe Gen 3 slots
PCIe expandability allows for 10GbE/25GbE/40GbE adapters to increase application performance.
4 x 10GbE SFP+ ports
Four 10GbE SFP+ ports accelerate virtualization, large file sharing, and intensive data transfer.
Real-time SnapSync
Near-limitless snapshots and SnapSync for snapshot remote backup assist businesses to resume essential services in the shortest time.
Virtualization applications
Supports VMware® vSphere® 6.5, Windows Server® 2016 and Citrix® XenServer® 7.0 for storage virtualization. Compatible with OpenStack® cloud environments.
Active-Active high availability with optimal storage efficiency
In Active-Active storage system architecture, both controllers are able to provide a complete range of services, which is different from the Active-Standby architecture of single-controller systems. The Active-Active architecture does not have the disadvantage of idle computing resources. To leverage the strengths of the ES1686dc Active-Active controller architecture, it is recommended to create multiple storage pools and distribute their ownership between both controllers. This allows simultaneous output from both controllers for better load balancing.
Active-Standby single-controller system
With two HA systems you are paying twice the price and causing a load imbalance as workloads are only processed on the active system. A power outage could cause data loss, and the disconnected network invalidates the HA architecture.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your QNAP Enterprise ZFS NAS ES1686DC-2142IT-96G SAN/NAS Storage System today!
- Experience unmatched performance, built-in security and remote management capabilities with Intel Xeon 1.90 ghz processor
- RAID technology - data reliability, fault tolerance and improved overall performance
- Gigabit Ethernet enables higher aggregate data transfer capacity which results in a better overall performance
| General Information | |
|---|---|
| Manufacturer | QNAP Systems |
| Manufacturer Part Number | ES1686DC-2142IT-96G-US |
| Manufacturer Website Address | http://www.qnap.com |
| Brand Name | QNAP |
| Product Line | Enterprise ZFS NAS |
| Product Model | ES1686DC-2142IT-96G |
| Product Name | Enterprise ZFS NAS ES1686DC-2142IT-96G SAN/NAS Storage System |
| Product Type | SAN/NAS Storage System | Storage |
| Number of Hard Drives Supported | 16 |
| Number of Solid State Drive Supported | 16 |
| SSD Cache Capacity | 128 GB |
| Flash Memory Capacity | 4 GB | Processor & Chipset |
| Number of Processors Installed | 2 |
| Processor Manufacturer | Intel |
| Processor Type | Xeon |
| Processor Model | D-2142IT |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 1.90 GHz | Memory |
| Standard Memory | 96 GB |
| Memory Technology | DDR4 SDRAM | Network & Communication |
| Ethernet Technology |
|
I/O Expansions |
| Number of Total Expansion Bays | 16 |
| Number of 2.5"/3.5" Bays | 16 |
| Total Number of Expansion Slots | 6.0 |
| Expansion Slot Type |
|
Controllers |
| Number of Controllers | 2 |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 6, 10, 50, 60, RAID-TP | Interfaces/Ports |
| Total Number of USB Ports | 4 |
| Number of USB 3.2 Gen 1 Ports | 4 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 6 | Software |
| Operating System | QES | Management & Protocols |
| Protocols |
|
Power Description |
| Maximum Power Supply Wattage | 770 W |
| Redundant Power Supply | Yes | Physical Characteristics |
| Height | 5.20" (132.08 mm) |
| Width | 19.02" (483.11 mm) |
| Depth | 24.83" (630.68 mm) |
| Form Factor | Rack-mountable |
| Rack Height | 3U |
| Weight (Approximate) | 25.83 kg | Miscellaneous |
| Package Contents |
|
Warranty |
| Limited Warranty | 5 Year |
| UPC | 885022017645 |
