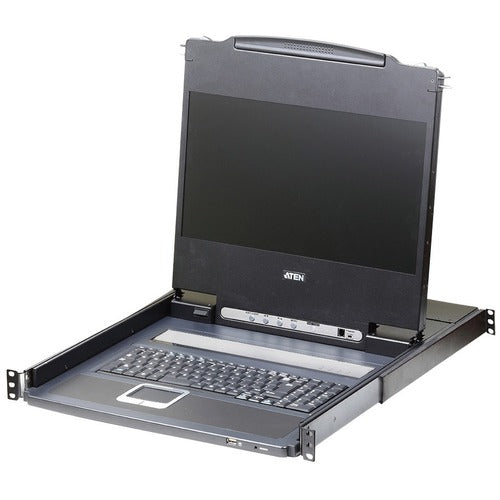

ATEN CL6700MW DVI Full HD LCD Console CL6700MW

Out of stock

Product Type Rackmount LCDs

Vendor ATEN

To add this product to your wish list you must Sign In or Create an account

The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3'' LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW's console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

The CL6700MW features a port for an external USB mouse on the unit's front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your ATEN CL6700MW DVI Full HD LCD Console today!

Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700MW)
Integrated KVM console with a 19" DVI LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack (CL6700N)
Superior video quality - up to 1920 x 1080 @ 60Hz (CL6700MW); up to 1280 x 1024 @75 Hz (CL6700N)
Supports an external console with USB / DVI / VGA / HDMI connectors (CL6700MW); supports an external console with USB / DVI / VGA connectors (CL6700N)
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Audio support (speakers)
Standard rack mount kit included
Optional Easy Installation Rack Mounting Kit available
Standard 105-key keyboard; Sun keyboard emulation

General Information
Manufacturer	ATEN Technology, Inc
Manufacturer Part Number	CL6700MW
Manufacturer Website Address	http://www.aten.com/us/en/
Brand Name	ATEN
Product Name	CL6700MW DVI Full HD LCD Console
Product Type	LCD Rack Console
Technical Information
Device Type	LCD Rack Console
Display & Graphics
Screen Size	17.3"
Display Screen Type	LCD
Screen Mode	Full HD
Screen Resolution	1920 x 1080
Input Devices
Keyboard	Yes
Pointing Device Type	TouchPad
Interfaces/Ports
USB	Yes
HDMI	Yes
DVI	Yes
VGA	Yes
Number of USB Ports	5
Number of HDMI Ports	2
Number of DVI Ports	2
Number of VGA Ports	2
Power Description
Input Voltage	120 V AC 230 V AC
Physical Characteristics
Product Material	Metal
Rack Height	1U
Height	1.73" (44 mm)
Width	18.90" (480 mm)
Depth	23.20" (589.20 mm)
Weight (Approximate)	11.38 kg
Miscellaneous
Package Contents	CL6700MW DVI Full HD LCD Console 1 x Custom USB DVI KVM Cable Set 1 x Power Cord 1 x Firmware Upgrade Cable 1 x User Instructions Standard Rack Mount Kit
Platform Supported	Mac PC Linux Sun
Environmentally Friendly	Yes
Country of Origin	Taiwan
Warranty
Limited Warranty	2 Year
UPC	672792402760
