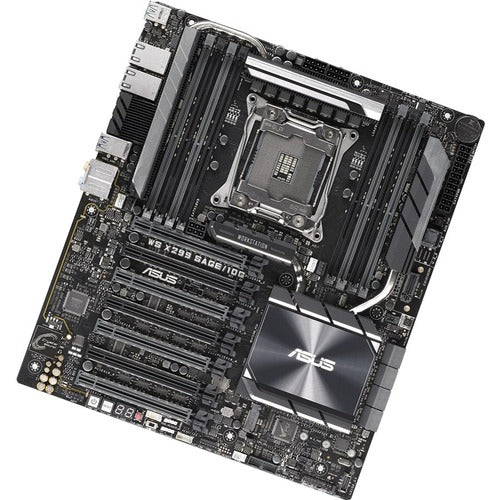

Asus WS X299 SAGE/10G Workstation Motherboard WS X299 SAGE 10G
1 In stock
Motherboards
Asus
To add this product to your wish list you must Sign In or Create an account
Intel LGA 2066 CEB motherboard with quad-GPU support, DDR4 4200MHz, Dual Intel®10G LANs, M.2, U.2, USB 3.1 Gen 2 connectors, and ASUS Control Center
- Dual onboard Intel® 10G LAN (X550-AT2) ports: Increased data throughput and improved efficiency, ideal for transferring uncompressed 4K video and backing up large files.
- Quad-GPU graphics power: Fits up to four dual-slot graphics cards and supports 4-way NVIDIA® SLI™ or AMD CrossFireX™ GPU configurations.
- 5-Way Optimization: One-click, system-wide tuning, delivers optimized overclocking and intelligent cooling for a diverse range of workloads.
- Industry-leading cooling options: Comprehensive controls for fans and water pumps, via Fan Xpert 4 software or the acclaimed ASUS UEFI.
- Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance.
- ASUS Control Center: A software utility that provides convenient, secure and cost-saving centralized IT management for small - and medium-sized businesses.
- Ultra-fast storage: Up to 32Gbps dual M.2, U.2, plus up to 10Gbps USB 3.1 Gen 2 with Type-A and Type-C ports onboard and a front-panel connector.
The new WS X299 Sage/10G motherboard delivers a blend of tremendous GPU performance with up to Quad-SLI support, server-grade validation and comprehensive cooling options to provide the perfect system build for training neural networks and crunching other scalable compute loads. It shares the same refined aesthetics as WS X299 Sage/10G and adds dual 10 Gigabit Ethernet ports with the Intel X550AT2 10GBASE-T controller for uncompromising networking performance. Dual PLX chips extend the number of PCIe lanes to provide additional expansion slots, giving you robust connectivity options to configure your system with the tools you need to get your job done.
Workstation exclusive
Dual onboard 10G LAN
Featuring dual onboard 10G LAN ports backed by the cutting-edge Intel X550AT2 10GBASE-T Ethernet controller, WS X299 Sage/10G provides server-class connectivity that supports high-density, high-bandwidth and low-latency access-layer networks. With data-rates up to 10Gbps, WS X299 Sage/10G is able to transfer 4K videos and other large files in a fraction of the time required by conventional networking gear. The onboard controller negates the need to allocate a PCI Express slot to a dedicated network card, saving valuable space for other components.
Multi-GPU support
WS X299 Sage/10G fits up to four dual-slot graphics cards and supports both NVIDIA® SLI™ and AMD CrossFireX™ 4-way configurations to enable multi-GPU setups that harness the full power of the latest graphics technologies, including NVIDIA® Quadro®. With performance beyond 15.23 TFLOPS, NVIDIA Quadro is the perfect complement to WS X299 Sage/10G, delivering the best performance for design, modeling, medical research, and processing-intensive simulation and rendering applications.
ASUS Control Center
WS X299 Sage/10G features ASUS Control Center (ACC), a centralized and integrated IT management platform for monitoring and controlling ASUS commercial products, including servers, workstations and digital signage. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Asus WS X299 SAGE/10G Workstation Motherboard today!
- Compatible Core X-Series processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- RAID supported levels provide data reliability and fault tolerance
- Assure a solid foundation for PC components and magnify the performance with the support of multiple processors on SSI CEB workstation motherboard
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | WS X299 SAGE/10G |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | Asus |
| Product Model | WS X299 SAGE/10G |
| Product Name | WS X299 SAGE/10G Workstation Motherboard |
| Product Type | Workstation Motherboard | Processor & Chipset |
| Chipset Manufacturer | Intel |
| Chipset Model | X299 |
| Total Processor Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Processor Supported | Core X-Series |
| Multi GPU Supported |
|
Memory |
| Number of Memory Slots | 8 |
| Memory Form Factor |
|
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported |
|
| Memory Technology | DDR4 SDRAM |
| Intel Optane Memory Ready | Yes | I/O Controller |
| Controller Type | Serial ATA/600 |
| Intel VROC | Yes |
| Intel RST | Yes |
| Intel RSTe | Yes |
| RAID Supported | Yes |
| RAID Levels |
|
Video |
| Onboard Video | No | Audio |
| Audio Channels | 7.1 | Network & Communication |
| 10Gigabit Ethernet | Yes | I/O Expansions |
| Total Number of Expansion Slots | 7.0 |
| Total Number of PCI Express Slots | 7 |
| Number of PCI Express x16 Slots | 7 | Interfaces/Ports |
| Total Number of USB Ports | 6 |
| Number of USB 3.1 Ports | 6 |
| S/PDIF | Yes |
| Number of Network (RJ-45) Ports | 2 | Onboard Interfaces |
| Number of SATA Interfaces | 8 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 3 |
| Number of Onboard USB 3.1 Ports | 3 | Physical Characteristics |
| Form Factor | SSI CEB |
| Width | 12" (304.80 mm) |
| Depth | 10.50" (266.70 mm) | Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China | Warranty |
| Limited Warranty | 3 Year |
| UPC | 889349952009 |
