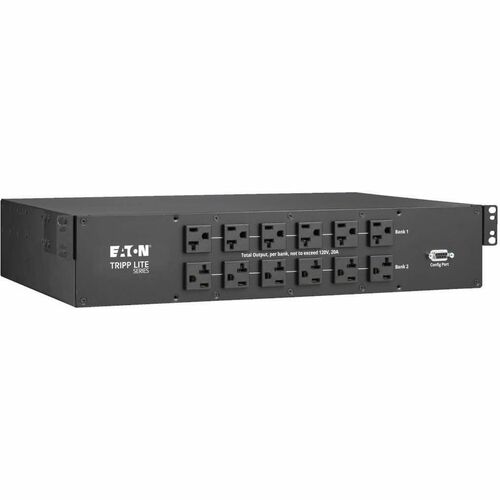

Tripp Lite by Eaton PDUMNH30AT2 25-Outlets PDU PDUMNH30AT2
Previous Next1 In stock
PDUs
Tripp Lite by Eaton
To add this product to your wish list you must Sign In or Create an account
Features
Single-Phase 30A ATS PDU Distributes and Monitors Network-Grade Power in Real Time This monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via its built-in network interface. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMNH30AT2 features 24 NEMA 5-15/20R 120V outlets and one NEMA L5-30R outlet, which distribute AC power to rack equipment. Dual 10-foot (3.1-meter) power cords with NEMA L5- 30P inputs connect to separate primary and secondary mains circuits, backup generators, UPS systems or utility power grids, including out-of-phase sources.
Switches from Primary to Secondary Power Source in Milliseconds
Dynamic solid-state automatic transfer switching (ATS) allows the PDU to switch to the secondary source within 1-5 milliseconds, should the primary source fail or become unstable, to ensure your connected equipment operates without interruption. An on-board ATS processor constantly evaluates the power quality of both input sources. It prevents switching if the secondary source is unavailable or of lower quality than the primary source.
Built-In LX Platform Network Management Card Allows Remote Access 24/7
The HTML5-based WEBCARDLX network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. The latest version of PowerAlert Device Manager (PADM20) provides enhanced remote management capabilities, including customizable dashboard graphs to fit user preferences. The PADM20 upgrade and Tripp Lite's PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks and backup and restoration of device configurations.
Digital LED Display and Load Meter Helps Prevent Potentially Expensive Overloads
A three-digit LED display shows measured or calculated amperage, kilowatt and voltage values at a glance. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low. Monitoring current provides 1% billing grade accuracy.
Mounts into 2U of Rack Space or on a Wall
Use the included mounting hardware to install the all-metal housing into 2U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall or under a counter. Included cord retention brackets help organize connected power cords and eliminate cable clutter.
TAA-Compliant for GSA Schedule Purchases
The PDUMNH30AT2 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUMNH30AT2 25-Outlets PDU today!
| General Information | |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMNH30AT2 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PDUMNH30AT2 |
| Product Name | PDUMNH30AT2 25-Outlets PDU |
| Product Type | PDU | Technical Information |
| PDU Type | Monitored |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30P |
| Plug/Connector Detail | 2 x NEMA L15-30P |
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type | Overload Protection | Power Description |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Power Rating (VA) | 2.90 kVA |
| Input Current | 30 A | Management |
| Management |
|
Interfaces/Ports |
| Network (RJ-45) | Yes | Physical Characteristics |
| Mounting Orientation | Horizontal |
| Mount Type |
|
| Rack Height | 2U |
| Height | 3.41" (86.61 mm) |
| Width | 17.32" (439.93 mm) |
| Depth | 11.89" (302.01 mm) |
| Weight (Approximate) | 6.22 kg | Miscellaneous |
| Package Contents |
|
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 2 Year |
| UPC | 037332261427 |
