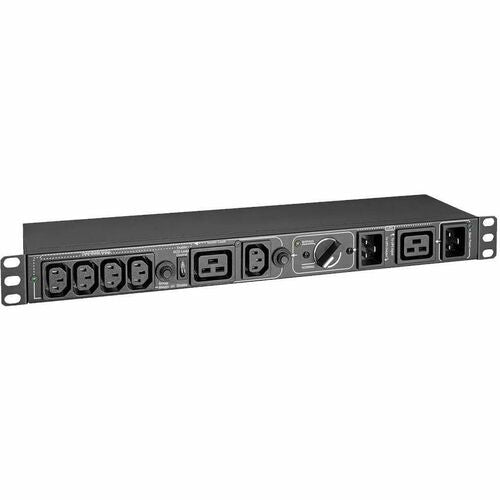

Tripp Lite by Eaton PDUBHV201U 6-Outlets PDU PDUBHV201U

Previous Next

Out of stock

Product Type PDUs

Vendor Tripp Lite by Eaton

Bypass PDU Recommended for Maintaining Continuous Power During UPS MaintenanceKeeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 200-250V 16A single-phase hot-swap PDU works in conjunction...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Bypass PDU Recommended for Maintaining Continuous Power During UPS Maintenance
Keeping mission-critical data center equipment operating at its optimal level often means scheduled maintenance. But what if you are unable to afford the costly downtime involved in powering down for regular upkeep? This 200-250V 16A single-phase hot-swap PDU works in conjunction with your UPS system to keep everything running 24/7/365. It allows you to manually transfer connected equipment to utility power via the PDU's bypass switch, permitting maintenance or equipment replacement with no interruption of performance.

Features Dual Inputs and a Manual Transfer Switch for Uninterrupted Operation
The PDUBHV201U features two C20 inlets that connect to separate UPS and utility input power sources with user-supplied power cables or the included C19-to-C20 cables. The manual transfer switch allows PDU output power to flow from either input. Flip the switch to Bypass to replace the UPS and flip back to Normal once the maintenance or UPS replacement is complete. Equipment connected to the outlets will continue to operate without interruption.

Optional ECO Switching Feature Enables Cost-Cutting Power Savings
By enabling the ECO power saving feature, you can power off a single bank of four controlled C13 outlets all at once when the devices connected to the master C13 and C19 outlets are powered off or go into a low-power consumption mode.

Mounts into 1U of Rack Space or on a Wall
Use the included mounting hardware to install the PDUBHV201U's all-metal housing into 1U of space in an EIA-standard 19-inch rack. You may also use the mounting brackets to secure the PDU to a wall.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUBHV201U 6-Outlets PDU today!

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUBHV201U
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUBHV201U
Product Name	PDUBHV201U 6-Outlets PDU
Product Type	PDU
Technical Information
PDU Type	Manual Bypass
Phase	Single Phase
Plug/Connector Type	IEC 60320 C20
Plug/Connector Detail	2 x IEC 60320 C20
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	1 x IEC 60320 C19 5 x IEC 60320 C13
Power Description
Input Voltage	230 V AC
Input Voltage Range	200 V AC - 250 V AC
Output Voltage Range	200 V AC - 250 V AC
Power Rating (Watt)	3.80 kW
Input Current	16 A
Physical Characteristics
Mounting Orientation	Horizontal
Mount Type	Wall-mountable Rack-mountable
Form Factor	Hot-swappable
Rack Height	1U
Height	1.73" (43.94 mm)
Width	17.24" (437.90 mm)
Depth	3.94" (100.08 mm)
Weight (Approximate)	2.36 kg
Miscellaneous
Package Contents	PDUBHV201U 6-Outlets PDU 2 x C19-to-C20 Power Cables Mounting Hardware Owner's Manual
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332262455
