On Sale

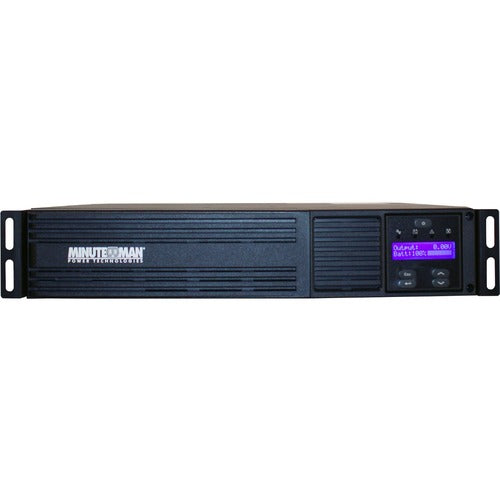

Minuteman EXR Series Line Interactive Uninterruptible Power Supply EXR750RT2U
Previous Next1 In stock
General Purpose UPS
Minuteman
To add this product to your wish list you must Sign In or Create an account
Backup Versatility Redefined: Line Interactive Technology with True-sinewave output
The EXR Series offers users a robust and advanced line interactive UPS offering. New features include a higher power factor for improved UPS efficiency, auto-recognition of external battery packs for a smarter extended run-time solution, tool-less battery connection and replacement and so much more!
The EXR Series UPSs offer complete protection from all electrical problems, including spikes, surges, sags, brownouts, and blackouts, in a versatile rack/tower convertible format. True sine wave electrical output ensures the best power for sensitive electronic equipment.
EXR® Key Features
Key Features Include:
- 0.9 power factor - increased capacity without migrating to larger models
- NEW Alphanumeric LCD Dot Matrix display - easy access to key UPS statuses
- UPS configuration options via front panel - make key adjustments utilizing the front panel LCD
- Load shedding - two power banks allow equipment prioritizing for increased runtime
- Independent Battery Bypass™ - provides voltage regulation with surge and spike protection even when batteries are weak or dead.
- Auto-recognition of external battery packs - automatically recalculate runtimes
- Unlimited runtime capability with external battery packs - extended runtime solution to meet any backup power demand
- Flexible installation - rack or tower configurable; wall mount kits available
- Simultaneous USB, RS232, and SNMP communications
- Minuteman® SentryHD™ - UPS monitoring and control software included
- Industry-leading product warranty - featuring a 3-year non-prorated warranty (including batteries)
- Dedicated remote Emergency Power Off (EPO) port
- 120V & 208V - 208V models available (1500 & 3000VA models)
- cULus certification - NOM certification (Mexico)
- RoHS 2 compliant
- Energy Star 2.0 certification
Front LCD Panel
The NEW Alphanumeric LCD Dot-Matrix EXR Series Display
Provides more detailed information about the UPS status than the previous LCD display, including:
- Input and Output Voltage
- Estimated runtime
- UPS Operating Mode
- UPS Self-test results
- Battery Condition
- Display model and serial number
- View load bank status and capacities
- Display battery module part number
- Replace Error Codes with descriptions
The LCD panel is designed so that it can be oriented vertically or horizontally depending on the installation orientation of the UPS.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Minuteman EXR Series Line Interactive Uninterruptible Power Supply today!
- Works adequately in situations where the supply is prone to sags and surges
- Up to 7 minute runtime on full load to preserve critical data from power shortage interruptions
- 675 W load capacity - backup power for your valuable electronics
- 750 VA load capacity provides sufficient backup during power failures
| General Information | |
|---|---|
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | EXR750RT2U |
| Manufacturer Website Address | http://www.minutemanups.com |
| Brand Name | Minuteman |
| Product Series | EXR |
| Product Model | EXR750RT2U |
| Product Name | EXR Series Line Interactive Uninterruptible Power Supply |
| Product Type | Line-interactive UPS | Technical Information |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Dataline Protection | RJ-45 |
| Phase | Single Phase |
| Application/Usage |
|
Power Description |
| Load Capacity (VA) | 750 VA |
| Load Capacity (Watt) | 675 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 80 V AC - 164 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Waveform Type | True Sine Wave |
| Surge Energy Rating | 1000 J | Management |
| Network Management | SNMP | Controls/Indicators |
| Status Indicators |
Front LCD Panel:
|
Interfaces/Ports |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes | Battery Information |
| Backup/Run Time (Full Load) | 7 Minute |
| Backup/Run Time (Half Load) | 19 Minute |
| Hot Swappable | Yes | Environmental Conditions |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Operating Humidity | 0% - 95% |
| Maximum Operating Temperature | 104°F (40°C) | Physical Characteristics |
| Height | 3.48" (88.39 mm) |
| Width | 18.96" (481.58 mm) |
| Rack Height | 2U |
| Form Factor | Tower/Rack/Wall Mountable |
| Weight (Approximate) | 18.91 kg | Miscellaneous |
| Software Included | Minuteman SentryHD |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Energy Efficiency Certification | ENERGY STAR 2.0 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 | Warranty |
| Limited Warranty | 3 Year |
| UPC | 784755155870 |
