TP-Link 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 1

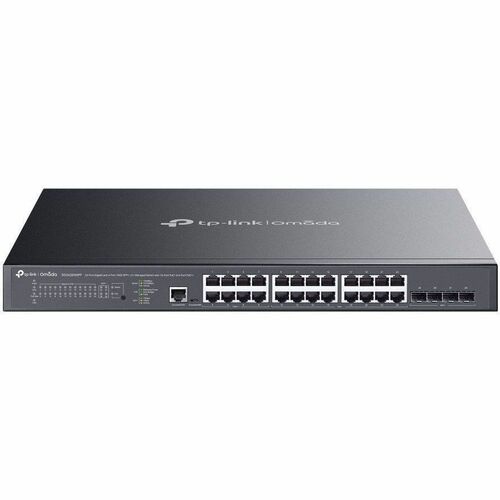

TP-Link 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ SG3428XMPP

Previous Next

Out of stock

Product Type Switches & Bridges

Vendor TP-Link

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ 4 SFP+ 10 Gbps slots 8 × Gigabit 802.af/at/bt PoE++ ports (90W maximum PoE budget for each port) 16 × Gigabit 802.3af/at PoE+ ports (30W maximum budget for each port) Total PoE budget of...

Wishlist

To add this product to your wish list you must Sign In or Create an account

Omada 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++

4 SFP+ 10 Gbps slots
8 × Gigabit 802.af/at/bt PoE++ ports (90W maximum PoE budget for each port)
16 × Gigabit 802.3af/at PoE+ ports (30W maximum budget for each port)
Total PoE budget of 500W*
Centralized cloud management via web or Omada app
Autonomous management via Web, CLI, SNMP and RMON
Static routing, VLAN, ACL, QoS, IGMP snooping, OAM and DDM
ERPS supports rapid protection and recovery in a ring topology
Durable metal housing and rack-mountable design

24 × Gigabit RJ45 ports
(8 × PoE++, 16 × PoE+)
4 SFP+ 10 Gbps slots
Total PoE budget of 500W (maximum 90W for each PoE++ port)
Centralized administration
Omada app
Zero-touch provisioning
Ethernet Ring Protection Switching
Static routing

Software-defined networking (SDN) with cloud access

Remotely manage your access points, switches and gateways across multiple sites from a single interface.

Multiple application scenarios

Monitoring

Works with IP cameras

Conference call

Works with IP phones

WiFi coverage

Works with hotspots

Wired Connections

Works with non-PoE devices such as PCs and printers

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your TP-Link 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ today!

Quickly and easily set up a wired network with 24 networking ports
Built-in power supply to ensure all components are being supplied with accurate voltage
Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
Rack mounting enables you to organize wires & secure cables for professional installation
Managed switch provides a reliable foundation for your network
Gigabit Ethernet port for ultra-fast network speeds
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

General Information
Manufacturer	TP-LINK Technologies Co., Ltd
Manufacturer Part Number	SG3428XMPP
Manufacturer Website Address	http://www.tp-link.com
Brand Name	TP-Link
Product Line	Omada
Product Model	SG3428XMPP
Product Name	24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++
Product Type	Ethernet Switch
Interfaces/Ports
Total Number of Network Ports	24
Network (RJ-45)	Yes
Port/Expansion Slot Details	8 x 10/100/1000BASE-T Gigabit Ethernet PoE++ RJ-45 Network Port 16 x 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port 4 x 1/10 Gigabit Ethernet SFP+ Expansion Slot 1 x RJ45 Console Port 1 x Micro-USB Console Port
Media & Performance
Media Type Supported	Twisted Pair Optical Fiber
Ethernet Technology	Gigabit Ethernet 10 Gigabit Ethernet
Network Technology	10/100/1000Base-T 1000Base-X 10GBase-X
Maximum Data Transfer Rate	1.25 GB/s
I/O Expansions
Expansion Slot Type	SFP+
Number of SFP+ Slots	4
Network & Communication
Layer Supported	2
Networking Standards	IEEE 802.3i IEEE 802.3u IEEE 802.3ab IEEE 802.3z IEEE 802.3ae IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.1x IEEE 802.1Q IEEE 802.3x IEEE 802.3ah IEEE 802.3ad IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1p IEEE 802.1ab
Management & Protocols
Manageable	Yes
Power Description
PoE (RJ-45) Port	Yes
PoE Budget	500 W
Input Voltage	120 V AC 230 V AC
Power Source	Power Supply
Power Consumption	605.50 W
Physical Characteristics
Product Material	Metal
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.70" (43.18 mm)
Depth	13" (330.20 mm)
Length	17.30" (439.42 mm)
UPC	810142820400
