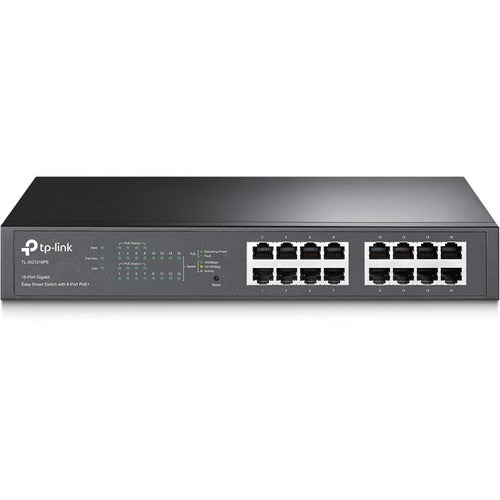

TP-Link 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ TL-SG1016PE
Previous NextOut of stock
Switches & Bridges
TP-Link
To add this product to your wish list you must Sign In or Create an account
What This Product Does
The TL-SG1016PE is an 16-Port Gigabit Desktop/Rack mountable Switch with 8 ports supporting the PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 124W, up to 30W per port, TL-SG1016PE can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1016PE can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices' power consumption is greater than or equal to 124W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port F > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power of Port 7 in response to the power exceeding the 120W limit., This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied to Port 7 as it has the lowest designated priority among the ports in use.
Easy To Use
TL-SG1016PE is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-LINK TL-SG1016PE 16-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your TP-Link 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ today!
- Flexible Full Gigabit 16-Port PoE Configuration: 8x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 150W, together w/ 8x Gigabit Non-PoE Port for high-speed connections.
- Easy Smart Management: Simple setup and monitor your network with easy-to-use web-based management interface and smart configuration utility.
- Network Segmentation: Abundant VLAN features improve network security via traffic segmentation.
- PoE Auto Recovery: The switch automatically detects and reboots the dropped or unresponsive PoE-powered devices without the need for manual monitoring or resetting.
- Overload Protection with Port Priority: When connected devices' total power consumption is greater than or equal to 150W, lower priority ports are disabled to prevent overloading.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Advanced Software Features: Prioritize your traffic and guarantee high quality of video or voice data transmission with Port-based 802.1p/DSCP QoS and IGMP Snooping.
- Limited Lifetime Warranty: Backed by our industry-leading limited lifetime warranty and free 24/7 technical support, you can work with confidence.
| General Information | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | TLSG1016PE |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Model | TL-SG1016PE |
| Product Name | 16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+ |
| Product Type | Ethernet Switch | Interfaces/Ports |
| Total Number of Network Ports | 16 |
| Network (RJ-45) | Yes |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details |
|
Media & Performance |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-T | Network & Communication |
| Layer Supported | 2 |
| Networking Standards |
|
Management & Protocols |
| Manageable | Yes | Power Description |
| PoE (RJ-45) Port | Yes |
| PoE Budget | 110 W |
| Power Source | Power Supply |
| Redundant Power Supply Supported | No |
| Power Consumption | 14.70 W | Physical Characteristics |
| Compatible Rack Unit | 1U |
| Form Factor |
|
| Height | 1.70" (43.18 mm) |
| Width | 11.60" (294.64 mm) |
| Depth | 7.10" (180.34 mm) | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China | Warranty |
| Limited Warranty | 3 Year |
| UPC | 845973098865 |
