Tripp Lite series B126-1A0 Video Console B126-1A0

Previous Next

2 In stock

Product Type Audio & Video Consoles/Extenders

Vendor Tripp Lite series

To add this product to your wish list you must Sign In or Create an account

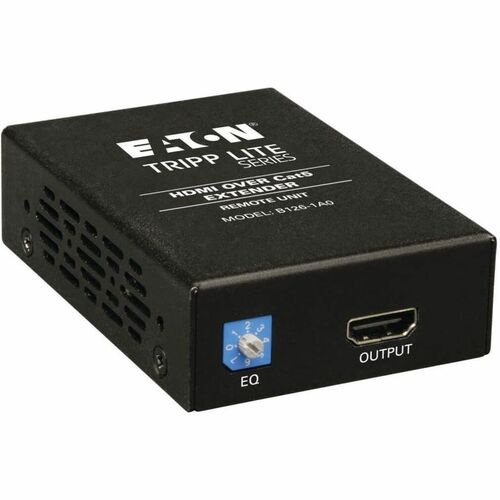

The B126-1A0 is a receiver unit that is used with the B126-002 and B126-004 transmitter units. It extends a 1080p (60Hz) signal to a monitor up to 150 ft. away using Cat5e/6 cable. To achieve maximum distance and resolution, use 24Awg Solid Wire Cat5e/6 cable. (Tripp Lite's N202-Series) It features a built-in Equalization control for adjustment of the video image. Supports 24-bit True Color (8-bits per channel), HDCP, 3D, and both stereo audio and 7.1 channel surround sound audio (7.1 channel surround sound signal will be Multi-Channel or PCM). Installation is simple. Connect the transmitter unit to an HDMI source using a Tripp Lite P568-Series HDMI cable (not included). Connect the receiver unit to a display using a Tripp Lite P568-Series HDMI cable (not included). Finally, connect the receiver to the RJ45 port on the transmitter using a single Cat5e/6 cable. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite series B126-1A0 Video Console today!

Works in tandem with B126-002 or B126-004 transmitter unit
Supports high-definition video resolutions up to 1080p (60 Hz)
Supports stereo and 7.1-channel surround sound audio
Works with all operating systems and HDMI video sources
Plug and play-no software or drivers to install

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B126-1A0
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite series
Product Model	B126-1A0
Product Name	B126-1A0 Video Console
Product Type	Video Extender Receiver
Technical Information
Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	200 ft (60960 mm)
Interfaces/Ports
Network (RJ-45)	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	1
Number of HDMI Outputs	1
Media & Performance
Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6
Physical Characteristics
Color Family	Black
Product Color	Black
Receiver Height	1" (25.40 mm)
Receiver Width	2.50" (63.50 mm)
Receiver Depth	3.60" (91.44 mm)
Form Factor	Wall Mountable
Miscellaneous
Package Contents	B126-1A0 Video Console Screwdriver for Adjustment of Equalization Mounting Hardware External Power Supply Owner's manual
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year
UPC	037332157485
