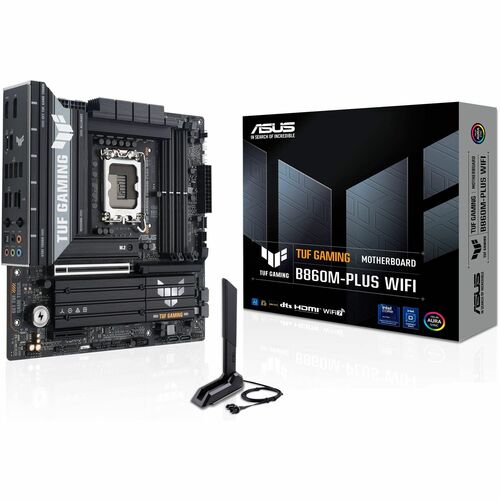

TUF GAMING B860M-PLUS WIFI Gaming Desktop Motherboard TUF GAMING B860M-PLUS WIFI
Previous Next8 In stock
Motherboards
TUF
To add this product to your wish list you must Sign In or Create an account
TUF GAMING B860M-PLUS WIFI
ASUS TUF GAMING B860M-PLUS WIFI takes all the essential elements of the latest Intel Core Ultra Processors (Series 2) and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. This platform delivers the power and connectivity that advanced AI PC applications demand.
Intelligent Overclocking | NPU Boost
The integrated NPU in Intel® Core Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.
Asynchronous Clock
For next-level frequency flexibility, the TUF Gaming B860M features a built-in clock generator that isolates CPU base clock from memory, NPU, D2D and NGU. Drive memory, NPU and others performance to their absolute brink while maintaining the stability of CPU clock domains.
Separate CPU BCLK from other domains for unfettered overclocking.
Intelligent | Intelligent Control | AI Advisor
ASUS AI Advisor is an ASUS technical expert that's always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.
UEFI BIOS
The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.
TurboV Core
TurboV Core is engineered for overclocking enthusiasts to elevate system capability with unprecedented simplicity. Accessed via ASUS DriverHub, TurboV Core provides intuitive configuration of CPU and DRAM parameters to unlock your computer's potential. No need to enter the BIOS, you can seamlessly modify settings directly from the Windows interface, and apply them right away without restart interruptions.
ASUS DriverHub
Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.
ASUS GlideX
Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.
Power Saving
Provides easy-to-use configuration options for PC beginners and advanced features for veterans.
Armoury Crate
Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your TUF GAMING B860M-PLUS WIFI Gaming Desktop Motherboard today!
- Compatible Core Ultra processor lets you perform all your computational tasks at a swift pace
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- IEEE 802.11be wireless standard support lets you connect to the internet and have instant access to social media, music, movies, and online games
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort transmits both audio and video signals through a common channel to deliver versatile performance
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the Micro ATX gaming desktop motherboard
- With 2 USB 2.0 ports, transfer several documents without error
| General Information | |
|---|---|
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | TUF GAMINGB860M-PLUSWIFI |
| Manufacturer Website Address | http://www.asus.com |
| Brand Name | TUF |
| Product Model | GAMING B860M-PLUS WIFI |
| Product Name | GAMING B860M-PLUS WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard | Technical Information |
| AI-powered | Yes | Processor & Chipset |
| Chipset Manufacturer | Intel |
| Chipset Model | B860 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1851 |
| Processor Supported | Core Ultra | Memory |
| Number of Memory Slots | 4 |
| Memory Form Factor |
|
| Maximum Memory Supported | 256 GB |
| Memory Speed Supported | 8800 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC | I/O Controller |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels |
|
Video |
| Onboard Video | CPU Dependent Video | Audio |
| Audio Channels | 7.1 | Network & Communication |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be | I/O Expansions |
| Total Number of Expansion Slots | 2 |
| Total Number of PCI Express Slots | 2 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 1 |
| PCI Express Standard |
|
Interfaces/Ports |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 2 |
| S/PDIF | Yes |
| VGA | Yes |
| HDMI | Yes |
| HDMI Version | 2.1 |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 | Onboard Interfaces |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 3 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 | Physical Characteristics |
| Form Factor | Micro ATX |
| Width | 9.60" (243.84 mm) |
| Depth | 9.60" (243.84 mm) | Miscellaneous |
| Package Contents |
|
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| UPC | 197105783096 |
