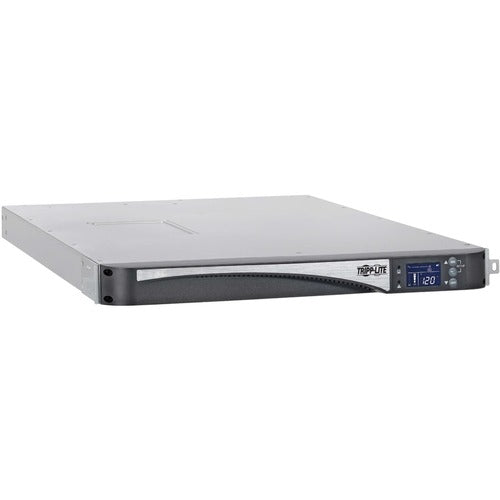

Tripp Lite by Eaton SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS SU2000LCD1U
Previous Next4 In stock
General Purpose UPS
Tripp Lite by Eaton
To add this product to your wish list you must Sign In or Create an account
Double-Conversion UPS Protects Equipment Against Damage, Downtime and Data Loss
This 100/120/127V 50/60 Hz on-line double-conversion UPS system maintains perfect output by converting AC input to DC, then reconverting UPS output to fully regulated sine wave AC with +/-3% voltage regulation in on-line and battery modes. Featuring 1600W capacity, 540 joules of surge suppression, true on-line operation with pure sine wave output and zero transfer time between on-line and battery modes, the SmartOnline® SU2000LCD1U provides the highest level of AC power protection and battery backup for network equipment in your small- to medium-size data center or computer room.
Individually Controllable Load Banks Let You Access and Control Outlets Remotely
Five NEMA 5-20R outlets are split into two switchable load banks, allowing you to reboot select components or shed loads remotely. This UPS is recommended for any application supported by in-rack IT equipment, including servers, switches, phone systems, kiosks and high-end engineering and A/V computer systems.
Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
The field-replaceable, hot-swappable internal battery provides 10 minutes of support at half load (800W) and three minutes at full load (1600W), keeping protected equipment operational through power failures. The intelligent battery management system with temperature-compensated charging extends battery life.
ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
By meeting strict EPA efficiency guidelines, this ENERGY STAR-certified UPS system helps you save money and energy. A power-saving Economy mode setting option offers enhanced efficiency and reduced BTU output when utility power is already high quality.
Set Output Frequency to Match That of Your Connected Equipment
Using the UPS in Frequency Conversion mode will correct or convert the incoming frequency of 50 Hz to output 60 Hz (and vice versa).
Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
The front-panel LCD features eight selectable screens of UPS data (including load, voltage and battery data) and multiple screens of configuration and setup options. LEDs indicate AC output availability and fault status. On-screen operational diagram offers an easy-to-grasp visual representation of on-line, battery and ECO/Bypass modes.
Advanced Communications Ports Allow for Automatic Shutdowns
RS-232 and HID-compliant USB ports connect to a computer running Tripp Lite's free downloadable PowerAlert® software to enable safe unattended system shutdown in case of a prolonged power failure. Wireable ports enable EPO (Emergency Power Off) and ROO (Remote Off/On) operation for UPS emergency and daily operation preferences. RS-232 and USB cables are included.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS today!
- Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
- 1.60 kW load capacity - backup power for your valuable electronics
- 2 kVA load capacity provides sufficient backup during power failures
| General Information | |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | SU2000LCD1U |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartOnline |
| Product Model | SU2000LCD1U |
| Product Name | SmartOnline SU2000LCD1U 2000VA Rack-mountable UPS |
| Product Type | Double Conversion Online UPS | Technical Information |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 5 x NEMA 5-15/20R |
| Dataline Protection | RS-232 |
| Transfer Time | 0 ns |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Application/Usage |
|
Power Description |
| Load Capacity (VA) | 2 kVA |
| Load Capacity (Watt) | 1.60 kW |
| Input Voltage | 120 V AC |
| Output Voltage |
|
| Output Frequency | 60 Hz |
| Waveform Type | Pure Sine Wave |
| Surge Energy Rating | 540 J | Management |
| Network Management | SNMP/Web |
| Alarm |
|
Controls/Indicators |
| Status Indicators |
LED Indicators:
|
Interfaces/Ports |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes | Battery Information |
| DC System Voltage | 48 V DC |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 3 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes | Environmental Conditions |
| Maximum Operating Elevation | 9842.52 ft (3000000 mm) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Sound Emission (A-Weighted) | 65 dB(A) |
| Thermal Dissipation | 888.70 BTU/h | Physical Characteristics |
| Height | 1.73" (44 mm) |
| Width | 17.32" (440 mm) |
| Depth | 27.95" (710 mm) |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 22 kg | Miscellaneous |
| Package Contents |
|
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 2 Year |
| UPC | 037332238146 |
