Tripp Lite by Eaton PDUMV20HV-36 20-Outlets PDU PDUMV20HV-36
Previous Next8 In stock
PDUs
Tripp Lite by Eaton
To add this product to your wish list you must Sign In or Create an account

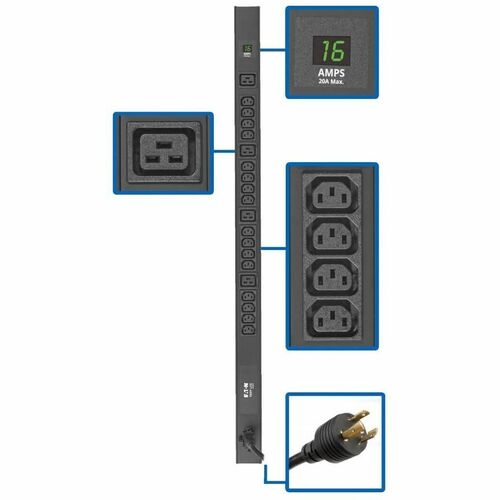

Single-Phase PDU Distributes and Monitors Network-Grade Power in Real Time
This metered PDU provides real-time local reporting of the total load level via its built-in digital current metering. Ideal for network IT applications, small computer rooms and other equipment rack applications, the PDUMV20HV-36 features 16 C13 and four C19 200-240V outlets for connecting equipment. Plug-lock insert sleeves are included to prevent connected cables from becoming accidentally dislodged. The switchless design helps prevent an accidental shutdown, which could lead to costly downtime.
Digital Load Meter Helps Prevent Potentially Expensive Overloads
A digital ammeter reports the total load for all connected equipment. Monitoring amperage helps ensure load levels remain well below maximum capacity with no danger of overload that could lead to costly downtime or damaged equipment. Maintaining proper load levels, even while adding new equipment, can keep your TCO (total cost of ownership) low.
Versatile Installation Options Give You Plenty of Choices
The 40-inch 0U PDU mounts vertically in an EIA-standard 19-inch rack using the included toolless mounting buttons or the included mounting brackets with user-supplied hardware. You may also use the brackets to secure the PDU to the underside of a counter with the addition of two user-supplied screws. Bolt-down retention brackets keep power cords organized and your rack free of clutter.
Compatible with a Variety of Input Cords to Fit Your Facility's Power Source
The PDU's C20 inlet accepts a variety of 16A international cordsets. An included 10-ft. (3.05 m) cord with NEMA L6-20P input plug connects to an AC power source, generator or protected UPS system to distribute power to connected loads.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUMV20HV-36 20-Outlets PDU today!
- Provide circuit protection and easy configuration for trouble-free access
- Monitor load level efficiently with PDU meter
| General Information | |
|---|---|
| Manufacturer | Tripp Lite by Eaton |
| Manufacturer Part Number | PDUMV20HV-36 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | PDUMV20HV-36 |
| Product Name | PDUMV20HV-36 20-Outlets PDU |
| Product Type | PDU | Technical Information |
| PDU Type | Metered |
| Phase | Single Phase |
| Plug/Connector Type |
|
| Receptacle Type |
|
| Receptacle Detail |
|
| Protection Type |
|
Power Description |
| Input Voltage | 230 V AC |
| Output Voltage |
|
| Power Rating (Watt) | 3.84 kW |
| Input Current | 20 A | Physical Characteristics |
| Mounting Orientation | Vertical/Toolless |
| Mount Type |
|
| Placement | Under-counter |
| Rack Height | 0U |
| Cord Length | 10 ft |
| Height | 39.75" (1009.65 mm) |
| Width | 2.25" (57.15 mm) |
| Depth | 3.75" (95.25 mm) |
| Weight (Approximate) | 2.36 kg | Miscellaneous |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 2 Year |
| UPC | 037332255921 |
