Tripp Lite by Eaton PDUMNV30HV2LX 42-Outlet PDU PDUMNV30HV2LX

Previous Next

5 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

The PDUMNV30HV2LX 5.8kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

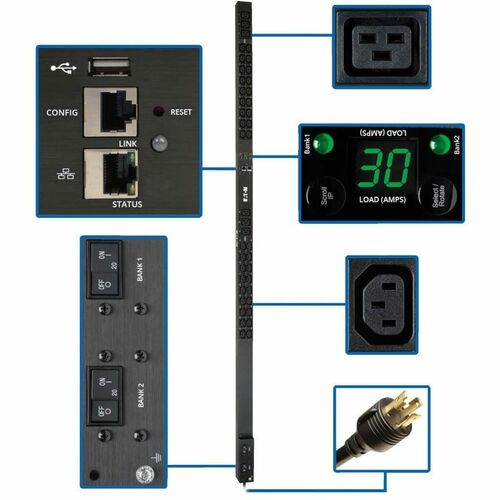

The 0U PDU features 42 outlets (36 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor each load bank's current and the total connected PDU load in real time to ensure they remain well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUMNV30HV2LX 42-Outlet PDU today!

With PDUs decisions for load balancing and minimizing extra cost can be managed
With monitored PDU, you can remotely monitor single-or three-phase voltage easily

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMNV30HV2LX
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUMNV30HV2LX
Product Name	PDUMNV30HV2LX 42-Outlet PDU
Product Type	PDU
Technical Information
PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	NEMA L6-30P
Receptacle Type	IEC 60320 C19 IEC 60320 C13
Receptacle Detail	6 x IEC 60320 C19 36 x IEC 60320 C13
Power Description
Input Voltage	230 V AC
Output Voltage	200 V AC 208 V AC 240 V AC
Power Rating (Watt)	5.80 kW
Input Current	30 A
Management
Management	Protocols: IPv4 IPv6 HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	70" (1778 mm)
Width	2.20" (55.88 mm)
Depth	2.65" (67.31 mm)
Weight (Approximate)	6.80 kg
Miscellaneous
Package Contents	PDUMNV30HV2LX 42-Outlet PDU Built-in LX Platform Interface Configuration Cable 42 x Plug-lock Insert Sleeves Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
UPC	037332204486
