Tripp Lite by Eaton PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet PDUMH1

Tripp Lite by Eaton PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet PDUMH15AT

Previous Next

4 In stock

Product Type PDUs

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

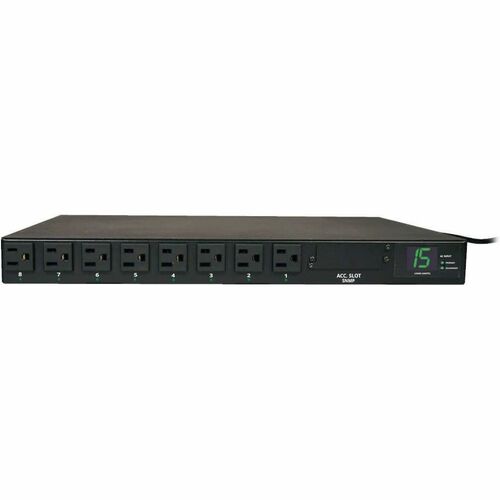

Tripp Lite's 120V 15A metered PDU system with Automatic Transfer Switching (ATS) is an 8 outlet PDU with a digital display to indicate total PDU power consumption in amps. Outlets are sequentially turned on at 250 milliscond intervals when the PDU is first energized from an unpowered state to prevent inrush-related equipment interaction on startup. Supports 1U rackmount installation in a 2 or 4 post rack. Included are 8 NEMA 5-15R outlets, and two 12 ft. 5-15P input power cord. Optional integrated ATS is available for use when two separately derived input power sources are available. The attached power cord serves as the primary AC input cable, while the included detachable power cord serves as the optional-use secondary AC input connection. The PDU system passes the primary input power through to connected equipment whenever line voltage and frequency levels are normal. If the primary input source goes outside of these tolerances or fails altogether, the ATS will automatically switch all PDU output to the secondary line sourced input power (when available) to maintain continuous operation of connected loads without reboots or service interruptions. Once the primary power source is restored, the PDU will automatically switch back to primary sourced input power. The dual input cabling can be configured for UPS maintenance bypass of standard UPS s

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet today!

Single phase 15A 120V Auto Transfer Switch / ATS PDU
Enables redundant A/B power option for single-corded network devices
Separate primary & secondary inputs connect to any two compatible power sources
1U horizontal rackmount; 2 NEMA 5-15P inputs; 8 NEMA 5-15R outlets
Two digit visual current meter reports equipment load in amps; Upgrade options available
TAA Compliant

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	PDUMH15AT
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUMH15AT
Product Name	PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet
Product Type	PDU
Technical Information
Plug/Connector Type	NEMA 5-15P
Plug/Connector Detail	2 x NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	8 x NEMA 5-15R
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Power Rating (VA)	1.80 kVA
Management
Management	Optional Automatic Transfer Switch (ATS) function enables for hot-swappable UPS maintenance bypass Dual UPS protection or dual AC input redundancy for critical single-corded network hardware Slot for optional SNMPWEBCARD accessory to enable remote individual outlet control over IP
Physical Characteristics
Mount Type	Rack-mountable
Rack Height	1U
Height	1.75" (44.45 mm)
Width	17.50" (444.50 mm)
Depth	14.50" (368.30 mm)
Weight (Approximate)	4.99 kg
Miscellaneous
Package Contents	PDUMH15AT PDU Metered ATS 120V 15A 8 Outlet PDU with attached 5-15P input power cord Detachable C13 to NEMA 5-15P 12 ft/3.6m power cord for optional secondary input User manual with warranty information
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year
UPC	037332126658
