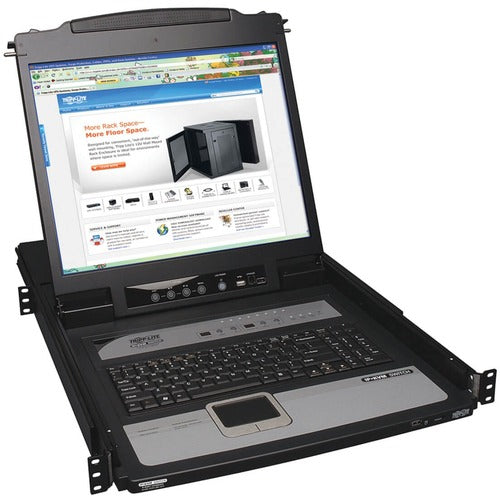

Tripp Lite by Eaton 8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD B020-U08-19-IP

Previous Next

2 In stock

Product Type Rackmount LCDs

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

Tripp Lite's B020-U08-19-IP KVM Switch gives you a rack-mountable keyboard, LCD and touchpad in a single console that occupies only 1U of rack space. From across the room, down the street or halfway around the globe, the B020-U08-19-IP can be accessed from any computer on the LAN, WAN or Internet. Easy to install and use, it's the optimal solution for controlling up to 8 computers/servers. Increase the number of connected computers up to 256 by daisy-chaining up to 31 B022-U08 KVM switches.

The B020-U08-19-IP has a built-in 19" LCD screen that supports video resolutions up to 1280 x 1024 @ 75Hz, with remote monitor resolutions up to 1600 x 1200 @ 60Hz. You can switch easily between the 8 ports using on-console push buttons, an on-screen display (OSD) or keyboard hot key commands. Up to 64 users can be authorized with any combination of admins and users. Multi-level security enhances protection of data and equipment.

This switch controls PS/2 or USB computers/servers using a P778-Series Combo KVM Cable Kit (two cable kits are included). A USB port on the front of the keyboard lets you connect an external mouse, plus an external USB 1.1 port means you can add a peripheral that can be shared across all connected servers. When not in use, the B020-U08-19-IP stores neatly in a rack drawer and pulls out when needed. This KVM console is compatible with all major operating systems. Heavy-duty steel housing stands up to frequent use.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton 8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD today!

Control computers/servers locally or via LAN, WAN or Internet
Occupies just 1U of space in a rack-mountable drawer
19" LCD screen supports video resolutions up to 1280 x 1024
Allows up to 64 user accounts, with multi-level security
Compatible with all operating systems

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	B020U0819IP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B020-U08-19-IP
Product Name	8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD
Product Type	LCD Rack Console
Technical Information
KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	8
Device Type	LCD Rack Console
Display & Graphics
Screen Size	19"
Display Screen Type	LCD
Screen Mode	SXGA
Screen Resolution	1280 x 1024
Input Devices
Keyboard	Yes
Pointing Device Type	TouchPad
Interfaces/Ports
USB	Yes
Number of USB Ports	2
Power Description
Input Voltage	120 V AC 230 V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Product Material	Steel
Rack Height	1U
Height	1.73" (43.90 mm)
Width	18.90" (480 mm)
Depth	27" (685.80 mm)
Weight (Approximate)	14.06 kg
Miscellaneous
Package Contents	8-Port NetDirector 1U Rackmount Console IP KVM Switch w/19" LCD 2 x 6 ft. USB/PS2 Combo KVM Cable Kits USB/PS2 Combo Console Cable Kit Grounding Wire RJ11 to DB9 firmware upgrade cable Rackmount Hardware C13 to 5-15P Power Cord CD with Owners Manual, Quick Start Guide, and Device Files Quick Start Guide
Platform Supported	PC Mac
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year
UPC	037332152886
