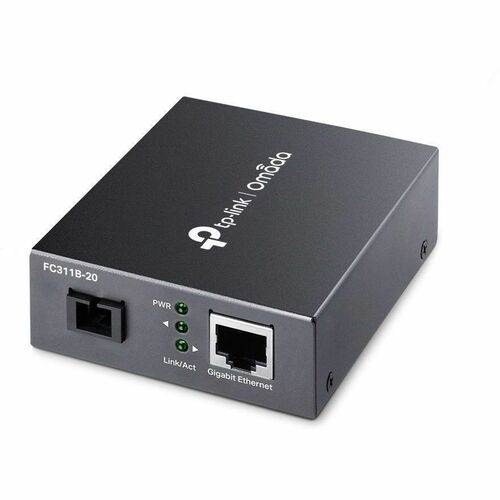

TP-Link Gigabit WDM Media Converter FC311B-20
Previous Next8 In stock
Transceivers/Media Converters
TP-Link
To add this product to your wish list you must Sign In or Create an account
What This Product Does
FC311B-20 (TL-FC311B-20) is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.
How This Product Works
FC311B-20 (TL-FC311B-20) adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311B-20 transmits data at 1310 nm wavelength and receives data at 1550 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the FC311B-20 (TL-FC311B-20) should send data at a wavelength of 1550 nm and receive data at a wavelength of 1310 nm. TP-Link another media converter FC311A-20 is one of the products that can cooperate with FC311B-20.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your TP-Link Gigabit WDM Media Converter today!
- 1× 10/100/1000Mbps Auto-Negotiation RJ45 port supports Auto-MDI/MDIX
- Auto-negotiation of Half-Duplex/Full-Duplex transfer mode
- Adopts WDM technology, transmitting and receiving data on one single fiber
- Extends fiber distance up to 20 km
| General Information | |
|---|---|
| Manufacturer | TP-LINK Technologies Co., Ltd |
| Manufacturer Part Number | FC311B20 |
| Manufacturer Website Address | http://www.tp-link.com |
| Brand Name | TP-Link |
| Product Model | FC311B-20 |
| Product Name | Gigabit WDM Media Converter |
| Product Type | Transceiver/Media Converter | Interfaces/Ports |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of SC Ports | 1 |
| SC Port Type | Duplex | Media & Performance |
| Media Type Supported |
|
| Fiber Mode Supported | Single-mode |
| Fiber Optic Cable Wavelength |
|
| Maximum Data Transfer Rate | 1000 Mbit/s |
| Maximum Distance Supported | 20 km |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm | Network & Communication |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology |
|
Physical Characteristics |
| Form Factor |
|
| Height | 1.06" (27 mm) |
| Width | 3.72" (94.50 mm) |
| Depth | 2.87" (73 mm) | Miscellaneous |
| Package Contents |
|
| UPC | 845973030940 |
