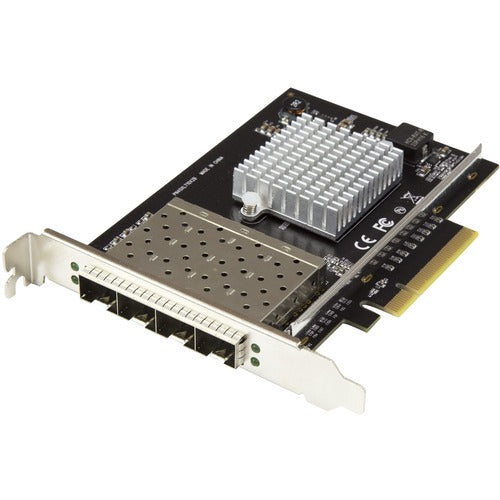

StarTech.com Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip PEX10GSFP4I

5 In stock

Network Interface Cards

StarTech.com

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use...
$869.72
+
-
Wishlist

To add this product to your wish list you must Sign In or Create an account

This SFP+ server network card delivers reliable, high-performance network connectivity, by adding four open SFP+ slots to your server or high-powered workstation. It provides an easy and cost-effective way to upgrade to a 10 Gigabit fiber network using SFP+ modules of your choice and gives you the flexibility to use either multimode or single-mode fiber.

Add redundant connections in zero-downtime environments

With multiple available ports, you can avoid network downtime by adding fault-tolerant connections using two or more modules to provide high-bandwidth network links to your mission-critical servers or workstations.

Increase your network speed

This PCIe network card lets you take advantage of the increased speed and stability of a 10 Gigabit network, with data transfers of up to 10Gbps.

Add scalable network connections to your server or workstation

The network interface card is compatible with most 10GbE SFP+ transceivers. This gives you flexible and scalable configuration options, for connecting your computer directly to a fiber network at greater distances.

The card features four open SFP+ slots with support for interchangeable 10GBase SFP+ modules. This gives you the option to use the fiber transceiver modules that best suit your network needs based on distance and connector type. StarTech.com offers a wide variety of SFP+ transceiver modules to suit your network requirements. In addition, StarTech.com SFP+ cables provide a dependable solution for linking telecom and data communications equipment, such as routers and switches.

Enhance your network capabilities

The SFP+ server network card features the Intel® XL710 chipset, delivering the power, performance and enhanced capabilities you need for reliable connections to your server or computer. The Intel chip offers many advanced features including Intel® Virtualization Technology for Connectivity, PXE network boot support and up to 9K jumbo frame support.

The PEX10GSFP4I is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your StarTech.com Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip today!

  • QUAD SFP+ ADAPTER: 4 ports on SFP+ network card can provide redundancy, or be aggregated for demanding applications; Data Center Bridging (DCB), virtualization incl. VT-c, SAN & iSCSI offload support
  • TECH SPECS: 10 Gbps per port | 4 SFP+ Ports, MSA Compliant | Intel XL710| MMF & SMF Fiber Support | PCIe 3.0 x8 | PXE Boot | 9K Jumbo Frames | Link Aggregation | VLAN | Full profile | 2 Yr. Warranty
  • TESTED & VERIFIED PERFORMANCE: We use Spirent SmartBits to validate performance; converged network adapter is compatible w/ leading servers like Dell PowerEdge, HPE ProLiant & Lenovo ThinkSystem
  • FLEXIBLE: Use MSA compliant SFP+ module or direct attach cable (DAC) supporting different fiber types; 10 Gigabit Ethernet NIC works w/leading brands of switches, routers, & devices like Cisco & HPE
  • WIDE HYPEVISOR & OS COMPATIBILITY: Fiber LAN card compatible w/Windows 7, 8, 8.1, 10; Windows Server 2008 R2, 2012, 2012 R2, 2016, 2019; Linux kernels 3.x + (LTS versions); VMWare ESXi 5.0, 5.1+

General Information
Manufacturer StarTech.com
Manufacturer Part Number PEX10GSFP4I
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip
Packaged Quantity 1 Each
Product Type 10Gigabit Ethernet Card
Technical Information
Chipset Manufacturer Intel
Chipset Model XL710
Interfaces/Ports
Host Interface PCI Express x8
Total Number of Ports 4
I/O Expansions
Expansion Slot Type SFP+
Media & Performance
Media Type Supported Optical Fiber
Maximum Data Transfer Rate 20 Gbit/s
Network & Communication
Network Technology
  • 10GBase-LR
  • 10GBase-SR
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Plug-in Card
Height 3.90" (99.06 mm)
Width 0.60" (15.24 mm)
Depth 5.50" (139.70 mm)
Weight (Approximate) 4.30 oz (121.90 g)
Miscellaneous
Package Contents
  • Quad-Port SFP+ Server Network Card - PCI Express - Intel XL710 Chip
  • 1 x Quick-start Guide
Device Supported Server
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin China
Warranty
Limited Warranty 2 Year
UPC 065030867740
