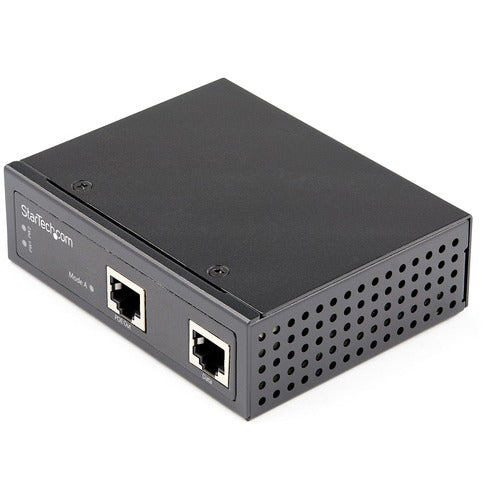

StarTech.com POEINJ30W PoE Injector POEINJ30W

Previous Next

3 In stock

Product Type Power Injectors/Splitters

Vendor StarTech.com

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable. 30 Watt Power Budget Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD)...

Wishlist

To add this product to your wish list you must Sign In or Create an account

This Gigabit Power over Ethernet (PoE+) injector supplies power and data connectivity to a Gigabit PoE-compliant device using a standard Ethernet cable.

30 Watt Power Budget

Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) powered devices (PD) like:

Cameras
Sensors
Wi-fi access points

Uses Cat 5e (or higher rated) Ethernet cabling.

Designed for Harsh Environments

Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.

Vibration: EN 60068-2-6
Shock: EN 60068-2-27
Free-fall: EN 60068-2-32

600,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.

Dual Power Inputs

Dual power inputs provide redundancy. Accepts terminal block power or coaxial power connectors with the barrel plug adapter, allowing the product to be hardwired or powered using an external power supply (not included), which does not require professional installation.

The POEINJ30W is backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your StarTech.com POEINJ30W PoE Injector today!

30 WATT GIGABIT ETHERNET PoE INJECTOR: Provides up to 30W of power (midspan) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like cameras, sensors, and wi-fi access points
TECH SPECS: 1 Gbps
48V-56VDC input
IEEE 802.3af / IEEE 802.3at (30W)
10/100/1000 Mbps auto negotiation
Link fault passthrough (LFP)

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	POEINJ30W
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Model	POEINJ30W
Product Name	POEINJ30W PoE Injector
Packaged Quantity	1 Each
Product Type	PoE Injector
Technical Information
Protection Type	Overload Protection
Power Description
Input Voltage	56 V DC
Interfaces/Ports
Input Ports	1 x Fast Ethernet
Output Ports	1 x PoE+
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	DIN Rail/Wall Mountable
Miscellaneous
Package Contents	POEINJ30W PoE Injector Mounting Hardware Kit Quick-Start Guide Terminal Block to Barrel Power Connector Adapter Terminal Block
Certifications & Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at IEC 61000-4-2 IEC 61000-4-4 IEC 61000-4-5 EN 60068-2-6 EN 60068-2-32 MET (UL) 60950-1 EN60950-1
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE) Restriction of Hazardous Substances (RoHS)
Country of Origin	Taiwan
Warranty
Limited Warranty	2 Year
UPC	065030891363
