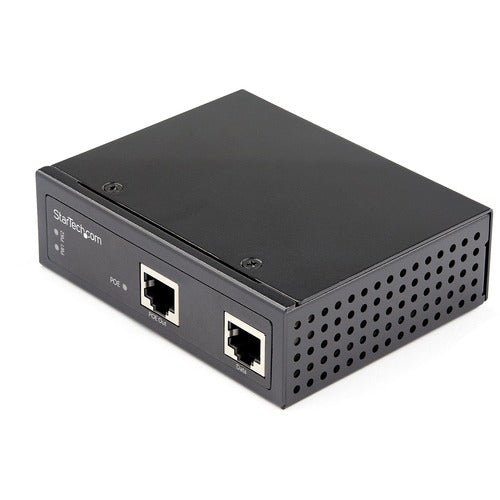

StarTech.com POEINJ1G90W PoE Injector POEINJ1G90W
Previous Next4 In stock
Power Injectors/Splitters
StarTech.com
To add this product to your wish list you must Sign In or Create an account
Flexible Configurations for a Variety of Applications
Compatible with IEEE 802.3bt and most previous 90W proprietary PoE (Ethernet) standards, including Cisco uPoE, Bosch, and AXIS. One product can cover multiple use requirements to improve standardization and deployment and dual power terminal block inputs provide redundancy for critical applications.
90 Watt Power Budget
As many typical PoE-enabled switches max out at 30W a high 90W power budget is perfect for demanding Type 3 and Type 4 PoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points.
Designed for Harsh Environments
Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing.
- Vibration: EN 60068-2-6
- Shock: EN 60068-2-27
- Free-fall: EN 60068-2-32
500,000+ hours MTBF rating using Telcordia/Bellcore at 50C for long-term reliability.
More from the Manufacturer
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your StarTech.com POEINJ1G90W PoE Injector today!
- WIDE STANDARD COMPATIBILITY: High speed Industrial Gigabit PoE Injector compatible with IEEE 802.3bt (PoE++) and previous 90W proprietary POE standards including Cisco uPoE, Bosch & AXIS
- 90W POWER BUDGET: Provides up to 90W of auto-negotiated power output for Type 3 and Type 4 PoE/Ultra/UPoE applications like tilt and pan cameras and high power IEEE 802.11ax wireless access points
- TECH SPECS: 1 Gbps; 52V-56VDC Power Input; IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt 90W max, uPoE, 10/100/1000 Mbps Auto Negotiation, DIN/Wall Mountable, Redundant Power Input
- ROBUST DESIGN: Industrial Power over Ethernet Injector w/MTBF of 500,000+hrs @ 50C; Vibration, shock & free fall rated; Rugged IP-30 aluminum housing; Hardened operating temp of -40C to 75C
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this TAA compliant PoE Injector is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance
| General Information | |
|---|---|
| Manufacturer | StarTech.com |
| Manufacturer Part Number | POEINJ1G90W |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Model | POEINJ1G90W |
| Product Name | POEINJ1G90W PoE Injector |
| Packaged Quantity | 1 Each |
| Product Type | PoE Injector | Technical Information |
| Protection Type | Surge Protection | Power Description |
| Input Voltage | 56 V DC | Interfaces/Ports |
| Input Ports | 1 x Gigabit Ethernet |
| Output Ports | 1 x PoE+ | Physical Characteristics |
| Color Family | Black |
| Product Color | Black |
| Form Factor | DIN Rail/Wall Mountable |
| Height | 4.10" (104.14 mm) |
| Width | 1.30" (33.02 mm) |
| Length | 3.20" (81.28 mm) |
| Weight (Approximate) | 6.14 oz (174 g) | Miscellaneous |
| Package Contents |
|
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance |
|
| Country of Origin | Taiwan | Warranty |
| Limited Warranty | 2 Year |
| UPC | 065030889568 |
