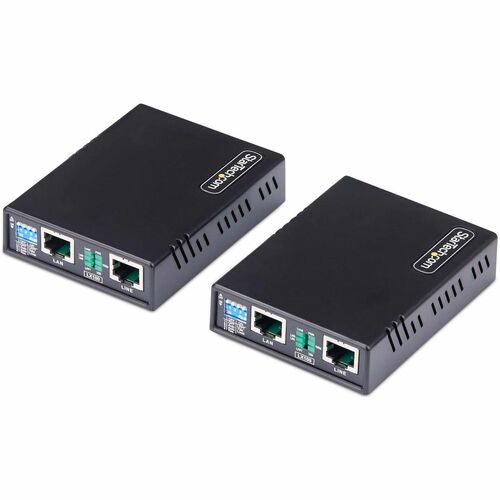

StarTech.com Network Extender C2-ETHERNET-EXTENDER

5 In stock

Cable Extenders

StarTech.com

Extend a network or control remote equipment using this Ethernet Extender. Use UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable for distances of up to 0.5mi (800m). Dual-speed (10/100Mbps) Ethernet signal booster enables efficient and reliable network connectivity. Extend Network Connectivity The unmanaged LAN extender utilizes the pairs of wires...
$436.85
+
-
Wishlist

To add this product to your wish list you must Sign In or Create an account

Extend a network or control remote equipment using this Ethernet Extender. Use UTP, Cat5, Cat5e, or Cat6 RJ45 terminated cable for distances of up to 0.5mi (800m). Dual-speed (10/100Mbps) Ethernet signal booster enables efficient and reliable network connectivity.

Extend Network Connectivity

The unmanaged LAN extender utilizes the pairs of wires within a UTP cable to function as a bridge, extending a local network beyond the standard 328ft (100m) limit of a UTP cable. Use one or two pairs of twisted wire to achieve different speeds and distances to better suit the setup. Achieve up to 984ft (300m) at 100Mbps with a single pair of wires and up to 0.5mi (800m) at 10Mbps with two pairs of wires.

Thoughtful Design

The booster kit ships ready to use in a standard setup (remote and local units). DIP switches allow to change the settings and behavior of the units for a custom deployment. Status LEDs provide a visual indication of the network and various settings that allow quick assessment of the setup.

Versatile

The Long-Range LAN Extender can be wall-mounted, using the included hardware. The kit includes power adapters for each unit. Use the LAN extender adapter for Internet or network access to remote office or branch locations, create remote WiFi APs (Access Points), remote IP-based video surveillance, equipment management and control, VoIP, automation, and more. For maximum compatibility, RJ11 copper cable is supported to connect the remote and local units.

Being a transparent network device allows the network extender to support the following Ethernet protocols, such as WoL (Wake-on-LAN), 16K Jumbo frames, 802.1Q VLAN tagging, and PXE boot.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your StarTech.com Network Extender today!

  • ETHERNET LAN EXTENDER: Unmanaged single-port dual-speed (10/100Mbps) RJ45 network extender kit; Reach distances of up to 0.5mi (800m) to overcome the typical limit of 328ft (100m) for Cat5/Cat5e/Cat6 copper Unshielded Twisted Pair (UTP) Ethernet cable
  • EXTENDED RANGE: Use one or two pairs of cable for variable bandwidth and distance; Reach up to 984ft (300m) at 100Mbps using a single-pair Ethernet cabling & up to 2,624ft (800m) at 10Mbps using two-pair ethernet cabling
  • FEATURES: Network extension kit acts as a transparent network device seamlessly passing Ethernet protocols; Supports IEEE 802.1q VLAN tag pass-through, WoL, 16K jumbo, PXE, and more; Supports RJ11 cabling; Includes power adapters for remote and local units
  • READY TO USE: Long-range Ethernet booster ships ready for deployment; DIP switches for configuration; LED indicators for power, remote/master mode, network status, LAN speed, and LFPT, allowing IT administrators to monitor and assess network connectivity
  • APPLICATIONS: Use the Ethernet range extender for remote Internet or network access, IP video surveillance, remote equipment diagnosis, management and control, WiFi APs, automation, VoIP, remote sensors, and more

General Information
Manufacturer StarTech.com
Manufacturer Part Number C2-ETHERNET-EXTENDER
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Network Extender
Packaged Quantity 2
Product Type Network Extender
Technical Information
Maximum Data Transfer Rate 12.50 MB/s
Maximum Operating Distance 2624.67 ft (800000 mm)
Interfaces/Ports
Network (RJ-45) Yes
Number of Network (RJ-45) Ports 4
Power Description
Input Voltage 240 V AC
Physical Characteristics
Color Family Black
Product Color Black
Product Material Plastic/Steel
Height 2.90" (73.66 mm)
Width 3.80" (96.52 mm)
Length 0.90" (22.86 mm)
Miscellaneous
Package Contents
  • Network Extender
  • 2 x Power Adapter
  • 2 x Mounting Bracket
  • 4 x Mounting Screws
  • 1 x Quick-Start Guide
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 2 Year
UPC 065030907439
