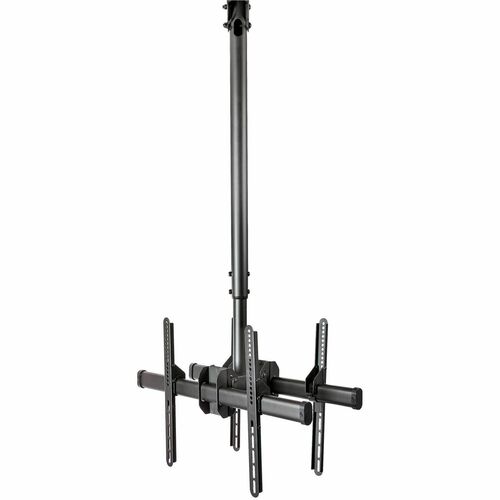

StarTech.com Ceiling TV Mount for Back-to-Back Displays - 3.5' to 5' Pole FPCEILBTB

5 In stock

Mounting Kits

StarTech.com

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content. Back-to-Back TV Mount...
$450.67
+
-
Wishlist

To add this product to your wish list you must Sign In or Create an account

Create impressive and effective digital signage with this ceiling TV mount, suspending two 32" to 75" TVs, back-to-back. Ideal for open spaces in retail, hospitality, restaurants and many other areas, the dual-screen mount provides a versatile way to inform customers, and doubles the audience viewing your content.

Back-to-Back TV Mount

The dual-screen mount securely holds two flat-screen TVs back to back, in landscape position. The steel mount supports VESA mount displays up to 600 x 400 mm with a weight capacity of 110 lb. (50 kg) per display.

Adjustable Height

With a telescopic pole, the ceiling TV mount lets you suspend two displays at your desired distance from the ceiling, working with a range of ceiling heights. The pole-mount TV bracket can extend from 41.7" to 61.4" (1060 to 1560 mm) from the ceiling, with a total lift (height extension) of 19.7" (500 mm).

Easy Screen Adjustment

For optimum viewing, the mount lets you swivel the display 360 degrees around the pole. The free-tilting design lets you adjust the tilt angle +5/-20 degrees.

Swivels to Suit Your Ceiling

The dual-display mount accommodates a wide variety of ceiling types. Swivel the ceiling TV mount to work with virtually any type of ceiling for level viewing, including sloped ceilings (up to +/-60 degrees) or horizontal (flat) ceilings.

Simple Setup and Cable Management

The ceiling mount provides a hook-and-mount design for easy setup. The wire-management channels keep cables concealed. The +/-3 degree post-installation leveling adjustments ensure ideal positioning after hanging.

FPCEILBTB is backed by a StarTech.com 5-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your StarTech.com Ceiling TV Mount for Back-to-Back Displays - 3.5' to 5' Pole today!

  • BACK TO BACK DUAL 75" TV CEILING MOUNT: Heavy-duty VESA compatible ceiling mount supports displays incl. curved TVs up to 75" (110lb/50kg) per screen; Height adjustable pole, 3.5' (1,0m) to 5.0' (1,5m) from ceiling
  • WIDE RANGE OF MOTION: Ceiling TV mount allows for both displays to be swiveled 360° around the telescopic pole, and individually rotated +/-3° & tilted +5/-20°; TV position secured w/ provided tools
  • VERSATILE INSTALLATION: Adjustable mounted ceiling bracket for multiple screens allows the pole to be adjusted and secured +/-60 degrees for angled/sloped/slanted ceilings to ensure displays are level
  • COMPATIBILITY: Universal hanging TV ceiling mount supports LG, Samsung, Sony, and Sharp TVs among others (screws/spacers incl) & VESA hole patterns of 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
  • TIDY AESTHETIC: The double television ceiling mount for two large displays provides a hook-and-mount design for easy setup and integrated cable management; ideal for digital signage applications

General Information
Manufacturer StarTech.com
Manufacturer Part Number FPCEILBTB
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name Ceiling TV Mount for Back-to-Back Displays - 3.5' to 5' Pole
Packaged Quantity 1 Each
Product Type Ceiling Mount
Product Information
Device Supported
  • Flat Panel Display
  • Curved Screen Display
  • TV
Number of Displays Supported 2
Maximum Load Capacity 220 lb (99790.32 g)
Minimum Screen Size Supported 32" (812.80 mm)
Maximum Screen Size Supported 75" (1905 mm)
Height Adjustable Yes
Features
  • Rotate
  • Tilt
  • Swivel
  • Pivot
  • Cable Management
  • Adjustable
  • Heavy Duty
  • Telescoping
  • 360° Swivel
  • 360° Rotation
Physical Characteristics
Color Family Black
Product Color Black
Product Material Steel
Mounting Pattern
  • 200 x 200
  • 300 x 300
  • 400 x 200
  • 400 x 400
  • 600 x 400
  • 200 x 300
  • 200 x 400
  • 300 x 200
  • 400 x 300
  • 600 x 200
  • 600 x 300
Height 32.90" (835.66 mm)
Width 6.50" (165.10 mm)
Length 26.80" (680.72 mm)
Weight (Approximate) 21.70 lb (9842.95 g)
Miscellaneous
Package Contents
  • 1 x Upper Pole (with Ceiling Mount)
  • 1 x Lower Pole
  • 1 x TV Mount
  • 4 x Vertical Brackets
  • 2 x Horizontal Brackets
  • 2 x M5 x 55 Screws
  • 2 x Nuts
  • 8 x M5 x 14 Screws
  • 8 x M6 x 14 Screws
  • 8 x M6 x 30 Screws
  • 8 x M8 x 30 Screws
  • 8 x M8 x 50 Screws
  • 8 x Rectangular Washers
  • 4 x Round Washers
  • 16 x Small Spacers
  • 16 x Large Spacers
  • 4 x Ceiling Mounting Screws
  • 4 x Concrete Anchors
  • 1 x Wrench
  • 1 x Hex Key
  • 1 x Mounting Template
  • 1 x User Manual
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty 5 Year
UPC 065030880671
