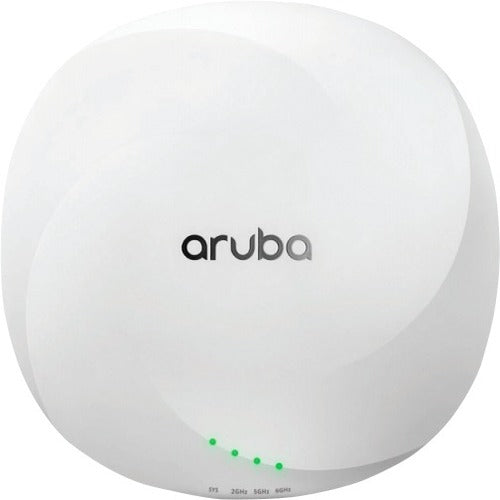

For enterprises who need more wireless capacity and wider channels, Aruba 630 Series Campus APs are designed to take advantage of the 6 GHz band via three dedicated radios. By using the 6 GHz band, capacity is more than doubled - so you can meet growing demand due to bandwidth-hungry video, increasing numbers of client and IoT devices and growth in cloud. Unique to Aruba, the 630 Series includes ultra tri-band filtering and dual 2.5 Gbps ethernet ports to eliminate coverage gaps, provide greater resiliency, and deliver fast, secure connectivity.

MORE CAPACITY AND WIDER CHANNELS

The 630 Series APs are designed to take advantage of the 6 GHz band, which translates into far greater speeds, wider channels for multi-gigabit traffic, and less interference. It delivers 3.9 Gbps maximum aggregate data rates Tri-radio, 2x2:2 MIMO in all three bands (3.9 Gbps aggregate peak).

Advantages of 6GHz

Wi-Fi 6E provides up to 1200 MHz in the 6 GHz band for higher throughput and improved application performance. With up to seven 160 MHz channels, Wi-Fi 6E can better support low-latency, bandwidth hungry applications like high-definition video and artificial reality/virtual reality applications. Only Wi-Fi 6E capable devices can use the 6 GHz band so there is no interference or slowdowns due to legacy devices.

Device class support

The 630 Series APs are part of the low power indoor (LPI) device class. This fixed indoor-only class uses lower power levels and does not require an Automated Frequency Coordination service (AFC) to manage incumbent outdoor services which is required for standard class APs.

LESS INTERFERENCE

630 Series Access Points include Aruba's ultra tri-band filtering, which enables enterprises to take advantage of the high end of 5 GHz with the lower end of 6 GHz without experiencing interference. Since there is only 50 MHz between 5 GHz and the 6 GHz, without advanced filtering, enterprises would likely experience problems between the bands and would therefore be limited in the number of channels available. By applying advanced filtering capabilities, enterprises can take full use of available spectrum without creating coverage gaps or islands.

BUSINESS CONTINUITY

The Series 630 APs provide high availability with two HPE Smart Rate ethernet ports for hitless failover for both data and power. Configurable to 1 or 2.5 Gbps, these dual ports provide business continuity for mission critical applications.

GLOBAL READINESS

While the need for more Wi-Fi capacity is recognized across the globe, countries are approaching 6 GHz differently. The 630 Series APs are set up to automatically update regulatory rules once 6E regulations have been approved and certified.

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your HPE AP-635 Wireless Access Point today!

• When connected to a compatible router or a network switch, this wireless access point lets you enjoy wireless internet connectivity throughout your home or office
• Electrical power is transmitted along with the data in a single cable to devices such as the Access Points, IP cameras or IP phones

General Information
Manufacturer	Hewlett Packard Enterprise
Manufacturer Part Number	R7J27A
Manufacturer Website Address	http://www.hpe.com
Brand Name	HPE
Product Series	630
Product Model	AP-635
Product Name	AP-635 Wireless Access Point
Product Type	Wireless Access Point
Technical Information
Wireless LAN Standard	802.11ax
Bluetooth Standard	Bluetooth 5
Network Band	Tri Band
Frequency Band	2.40 GHz 5 GHz 6 GHz
Indoor/Outdoor	Indoor
Wireless Transmission Speed	3.90 Gbit/s
MIMO Technology	Yes
Beamforming Technology	Yes
Data Encryption	Yes
Encryption Standard	WPA WPA2 WPA3 WPA2-MPSK
Interfaces/Ports
Ethernet Technology	2.5 Gigabit Ethernet
Number of Network (RJ-45) Ports	2
PoE (RJ-45) Port	Yes
PoE PD Port	Yes
USB	Yes
Physical Characteristics
Form Factor	Ceiling Mountable
Antenna Form Factor	Internal
Height	1.97" (50 mm)
Width	8.66" (220 mm)
Depth	8.66" (220 mm)
Weight (Approximate)	1.30 kg
UPC	190017492834
