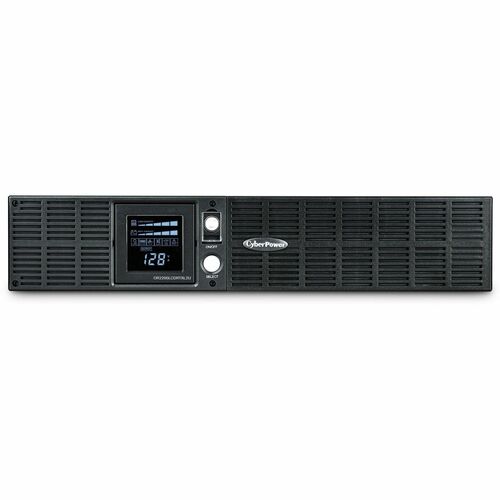

CyberPower Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS OR2200LCDRTXL2U
Previous Next2 In stock
Industrial UPS
CyberPower
To add this product to your wish list you must Sign In or Create an account
A rack/tower convertible UPS with line interactive topology, the CyberPower Smart LCD OR2200LCDRTXL2U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRTXL2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR2200LCDRTXL2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.
Battery BackupSupplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Automatic Voltage Regulation (AVR)
AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
Multifunction LCD
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The rotatable panel is easily readable whether the UPS is rack mounted or standing as a tower.
Data Line Protection
Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
PowerPanel® Business Software
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.
GreenPower UPS™ Bypass Design
Is a patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
Simulated Sine Wave Output
Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
Line Interactive Topology
Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
Three-Year Warranty
CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
Connected Equipment Guarantee
CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.
What's In The Box
UPS unit, User's manual, Rackmount brackets, Stands, Telephone cable, Emergency Power Off cable, USB A+B type cable.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your CyberPower Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS today!
- Capacity: 2100 VA / 1650 W
- Topology: Line Interactive
- Waveform: Simulated Sine Wave
- Output: 120 VAC ± 5%
- Plug type & cord: NEMA 5-20P, 10 ft. cord
- Outlet types: 8 × NEMA 5-20R
- Communication: USB, Serial, SNMP, EPO
- Management software: PowerPanel® Business
- Remote management: Yes, with optional RMCARD205
- Warranty: 3 year
| General Information | |
|---|---|
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OR2200LCDRTXL2U |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Series | Smart App LCD UPS |
| Product Model | OR2200LCDRTXL2U |
| Product Name | Smart App LCD OR2200LCDRTXL2U 2190 VA Tower/Rack-mountable UPS |
| Product Type | Line-interactive UPS | Technical Information |
| AVR | Yes |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 8 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Transfer Time | 4 ms |
| Dataline Protection |
|
| Overload Protection | Yes |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Application/Usage |
|
Power Description |
| Load Capacity (VA) | 2.19 kVA |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Frequency | 63 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Simulated Sine Wave | Management |
| Network Management | SNMP Manageable |
| Alarm |
|
Controls/Indicators |
| Status Indicators |
|
Interfaces/Ports |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes | Battery Information |
| Number of Batteries | 4 |
| Battery Characteristics | Maintenance-free |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 6 Minute |
| Backup/Run Time (Half Load) | 15 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes | Environmental Conditions |
| Maximum Operating Temperature | 104°F (40°C) | Physical Characteristics |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 2U |
| Height | 3.50" (88.90 mm) |
| Width | 17" (431.80 mm) |
| Depth | 18.80" (477.52 mm) |
| Weight (Approximate) | 40.82 kg | Miscellaneous |
| Package Contents |
|
| Software Included | PowerPanel Business Edition Software |
| Energy Star | No |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
| Limited Warranty | 3 Year |
| UPC | 649532022038 |
