CyberPower SM10KAPMA 3-Phase Modular UPS Power Modules SM10KAPMA
Previous Next2 In stock
Industrial UPS
CyberPower
To add this product to your wish list you must Sign In or Create an account

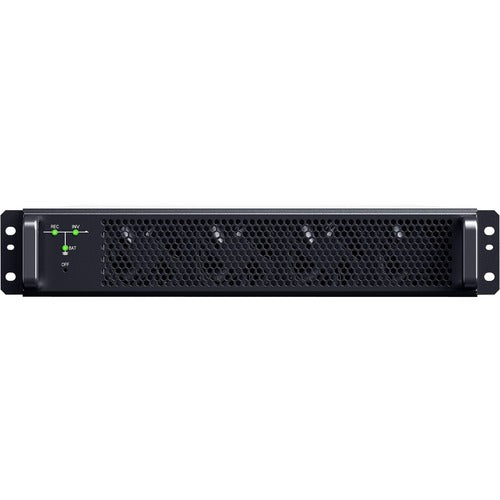

CyberPower 3-Phase Modular UPS SM010KAPMA Power Modules are ultra-robust units capable of handling brief overcurrents of up to 150%. Indicator lights show status of each Power Module and the high-density design puts 10KVA of power in just 2U of space. Includes a One-Year Limited Warranty. For CyberPower 3-Phase Modular UPS Smart App Online Series models SM020KAMFA, SM040KAMFA.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your CyberPower SM10KAPMA 3-Phase Modular UPS Power Modules today!
- Capacity: 10-20 kVA / 10-20 kW
- Redundancy: (N+1) capable
- Power Factor (PF): 1.0
- Topology: Double-Conversion
- Waveform: Sine Wave
- High Density: Yes - 2U
- Warranty: 1 year
General Information | |
---|---|
Manufacturer | CyberPower Systems, Inc |
Manufacturer Part Number | SM10KAPMA |
Manufacturer Website Address | https://www.cyberpowersystems.com/ |
Brand Name | CyberPower |
Product Line | Smart App Online |
Product Series | 3-Phase Power Modules |
Product Model | SM10KAPMA |
Product Name | SM10KAPMA 3-Phase Modular UPS Power Modules |
Product Type | Double Conversion Online UPS | Technical Information |
Overload Protection | Yes |
Phase | Three Phase |
Energy Saving | Online ECO Mode Efficiency >97.5% | Power Description |
Load Capacity (VA) | 10 kVA |
Load Capacity (Watt) | 10 kW |
Input Frequency | 70 Hz |
Output Frequency | 60 Hz |
Waveform Type | Sine Wave | Controls/Indicators |
Status Indicators | LED Indicators: Rectifier | Battery Information |
Battery Characteristics | Hot-swappable | Environmental Conditions |
Maximum Operating Temperature | 104°F (40°C) |
Storage Temperature | -4°F (-20°C) - 158°F (70°C) |
Maximum Operating Elevation | 10000 ft (3048000 mm) |
Storage Relative Humidity | 0% - 95% |
Sound Emission (A-Weighted) | 56 dB(A) |
Thermal Dissipation | 2797.83 BTU/h | Physical Characteristics |
Product Color |
|
Form Factor | Modular |
Rack Height | 2U |
Height | 3.30" (83.82 mm) |
Width | 17.20" (436.88 mm) |
Depth | 23.20" (589.28 mm) |
Weight (Approximate) | 16.42 kg | Miscellaneous |
Country of Origin | China |
Environmentally Friendly | Yes |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) | Warranty |
Limited Warranty | 1 Year |
UPC | 649532931170 |
