ATEN Proxime CE770 KVM Console/Extender CE770
Previous Next2 In stock
KVM Consoles/Extenders
ATEN
To add this product to your wish list you must Sign In or Create an account

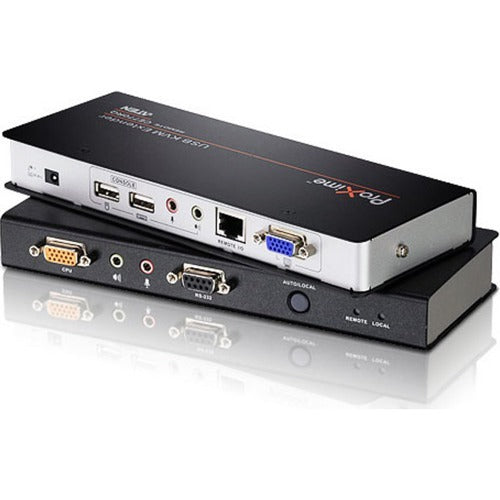

The Proxime CE770 KVM Console/Extender is a USB based KVM Extender with deskew function. The automatic signal compensation and RS-232 serial functionality allow access to a computer system from a remote USB console. Proxime CE770 KVM Console/Extender supports RGB delay tuner to manually synchronize the RGB signals. This allows users to deploy system equipment over large distances. The Proxime CE770 KVM Console/Extender's line synchronizing function corrects color phase and timing errors that occur over long distance transmissions. It also enables you to manually tune the R/G/B signal settings.
Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your ATEN Proxime CE770 KVM Console/Extender today!
- Local and Remote Units connect at distances up to 300 m using Cat 5e cable
- Dual console operation - control your system from both the local and remote USB keyboard, monitor, and mouse consoles
- Deskew Function - automatically synchronizes the time delay of RGB signals to compensate for distance
- Built-in ASIC for greater reliability and compatibility
- Auto Signal Compensation (ASC)
- RS-232 serial ports - allow you to connect to a serial terminal, or serial devices such as touchscreens and barcode scanners
- Sun/Mac keyboard support and emulation
- Audio Enabled - supports stereo speakers and microphone
- USB overcurrent detection and prevention
- Pushbutton operating mode selection (Local Unit only) - select between Local and Auto operating modes, with the press of a single button
| General Information | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CE770 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Line | ProXime |
| Product Model | CE770 |
| Product Name | Proxime CE770 KVM Console/Extender |
| Product Type | KVM Console/Extender | Technical Information |
| Connectivity Technology | Wired |
| KVM Technology | Analog |
| Number of Computers Supported | 1 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 1 |
| Maximum Operating Distance | 984.25 ft (300000 mm) | Video |
| Graphic Mode | WUXGA |
| Maximum Video Resolution | 1920 x 1200 | Interfaces/Ports |
| Network (RJ-45) | Yes |
| USB | Yes |
| Headphone | Yes |
| Microphone | Yes |
| VGA | Yes |
| Proprietary Interface | Yes |
| Number of VGA Ports | 2 |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 4 | Physical Characteristics |
| Form Factor | Rack-mountable |
| Transmitter Weight (Approximate) | 490 g |
| Receiver Weight (Approximate) | 480 g | Miscellaneous |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan | Warranty |
| Limited Warranty | 2 Year |
| UPC | 672792001970 |
