Tripp Lite by Eaton SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure

Tripp Lite by Eaton SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back SRW18USDP

Previous Next

5 In stock

Product Type Rack Equipment

Vendor Tripp Lite by Eaton

To add this product to your wish list you must Sign In or Create an account

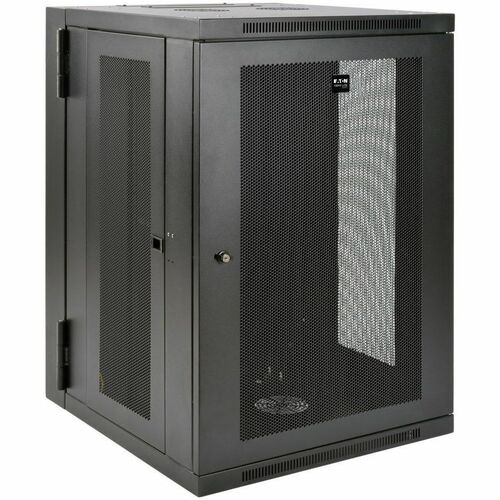

The SRW18USDP SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 250 pounds.

The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.

The SRW18USDP comes fully assembled and ready to mount to the wall, or use Tripp Lite's optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 24.5 inches deep, such as network switches, UPS systems and related battery packs and cabling.

More from the Manufacturer

Remember, everything you buy at Lotsofstuff.ca is brand new shipped directly from our Canadian warehouses with full manufacturer's warranty. Huge selection, amazing prices and fast shipping. Order your Tripp Lite by Eaton SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back today!

Maximum load capacity of 250 lb.
Swings away from wall on hinge for easy back-door access
Locking steel cabinet vented at sides, front, top and bottom
Flow-through ventilation keeps equipment cool
Secures 18U of 19 in. rack equipment up to 24.5 in. deep

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRW18USDP
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	SRW18USDP
Product Name	SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back
Product Type	Rack Cabinet
Technical Information
Application/Usage	UPS
Physical Characteristics
Form Factor	Wall Mountable
Color Family	Black
Product Color	Black
Product Material	Steel
Maximum Weight Capacity	113.40 kg
Static/Stationary Weight Capacity	113.40 kg
Height	35.61" (904.49 mm)
Width	23.50" (596.90 mm)
Depth	25.98" (659.89 mm)
Rack Height	18U
Rack Width	19" (482.60 mm)
Rack Depth	24.50" (622.30 mm)
Weight (Approximate)	45.77 kg
Miscellaneous
Package Contents	SmartRack 18U UPS-Depth Wall-Mount Rack Enclosure Cabinet, Hinged Back 42 x M6 Screws 42 x M6 Cage Nuts 42 x M6 Washers 42 x 12-24 Screws 2 x Keys Owner's Manual
Assembly Required	No
Country of Origin	China
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	5 Year
UPC	037332189707
